SDO HMI 2014-08-12 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.45 | 468.89 | 43.12 | 237.19 | 14.22 | 132.94 | 8.40 | 316.69 | 0.1990 | -483.5 | -346.5 | |
|
previous
or next observation for the same group /

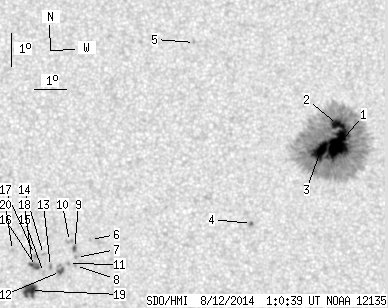

back to the solar disc SDO HMI 2014-08-12 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.80 | 420.37 | 19.67 | 213.07 | 14.55 | 133.99 | 9.45 | 311.71 | 0.2139 | -1389.3 | -437.9 | |
| 9.20 | -1.00 | 4.67 | -1.00 | 15.16 | 133.98 | 9.45 | 313.87 | 0.2208 | -1177.7 | 999999 | |
| 19.04 | -1.00 | 9.63 | -1.00 | 14.37 | 133.41 | 8.87 | 312.84 | 0.2047 | -1466.0 | 999999 | |
| 0.54 | 1.71 | 0.27 | 0.86 | 12.18 | 131.16 | 6.63 | 311.53 | 0.1514 | 1011.7 | 855.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.76 | 129.52 | 4.98 | 337.11 | 0.2136 | -732.0 | -645.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.73 | 126.14 | 1.61 | 343.30 | 0.0960 | 969.0 | 683.3 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.19 | 125.71 | 1.17 | 346.27 | 0.0848 | 1058.0 | 828.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.94 | 125.67 | 1.14 | 345.92 | 0.0805 | 981.0 | 755.8 | |
| 1.08 | 2.53 | 0.54 | 1.26 | 11.46 | 125.64 | 1.11 | 347.66 | 0.0892 | 1194.4 | 930.4 | |
| 0.00 | 3.34 | 0.00 | 1.66 | 11.68 | 125.49 | 0.96 | 349.77 | 0.0924 | 888.0 | 769.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.00 | 125.46 | 0.92 | 348.67 | 0.0807 | 1058.0 | 814.1 | |
| 1.99 | 6.23 | 0.99 | 3.09 | 10.76 | 125.21 | 0.67 | 351.20 | 0.0758 | 1152.1 | 865.6 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 10.91 | 124.90 | 0.36 | 355.38 | 0.0778 | 1179.0 | 912.1 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 11.28 | 124.68 | 0.15 | 358.26 | 0.0840 | 929.0 | 708.1 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 10.73 | 124.68 | 0.15 | 358.04 | 0.0744 | 890.0 | 727.3 | |
| 1.99 | 6.05 | 0.99 | 3.00 | 10.92 | 124.47 | -0.07 | 0.87 | 0.0776 | 1255.5 | 845.9 | |
| 0.00 | 0.45 | 0.00 | 0.22 | 11.28 | 124.41 | -0.13 | 1.53 | 0.0840 | 784.0 | 811.4 | |
| 1.89 | -16.00 | 0.94 | -16.00 | 10.98 | 124.34 | -0.19 | 2.41 | 0.0787 | 1051.5 | 999999 | |
| 10.92 | 15.43 | 5.42 | 7.66 | 10.18 | 124.28 | -0.25 | 3.88 | 0.0650 | 1141.4 | 775.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.40 | 123.72 | -0.81 | 9.20 | 0.0872 | 801.0 | 678.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
