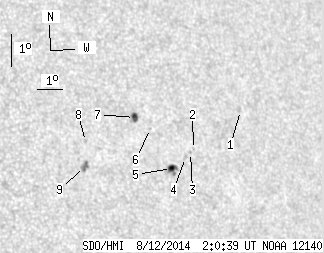

SDO HMI 2014-08-12 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.31 | 26.53 | 4.67 | 16.89 | 13.52 | 162.83 | 38.84 | 283.54 | 0.6292 | 74.4 | 109.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.86 | 14.41 | 167.00 | 43.01 | 284.21 | 0.6838 | 218.0 | 180.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 13.37 | 164.78 | 40.80 | 282.98 | 0.6546 | -369.0 | -419.3 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 13.29 | 164.64 | 40.65 | 282.88 | 0.6527 | -569.0 | -527.5 | |
| 0.00 | 1.99 | 0.00 | 1.29 | 13.15 | 164.41 | 40.42 | 282.70 | 0.6495 | -492.0 | -372.9 | |
| 3.70 | 7.76 | 2.38 | 5.00 | 12.86 | 163.78 | 39.79 | 282.34 | 0.6409 | -772.3 | -628.8 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 14.14 | 163.18 | 39.19 | 284.43 | 0.6350 | 527.0 | 489.4 | |
| 3.61 | 6.32 | 2.29 | 4.01 | 14.52 | 162.61 | 38.63 | 285.15 | 0.6283 | 804.3 | 356.6 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 13.92 | 160.55 | 36.56 | 284.62 | 0.5998 | 693.0 | 544.0 | |
| 0.00 | 6.23 | 0.00 | 3.83 | 13.16 | 160.37 | 36.39 | 283.40 | 0.5960 | 857.0 | 663.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
