SDO HMI 2014-08-12 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.94 | 25.34 | 5.13 | 16.32 | 13.25 | 163.14 | 39.70 | 283.00 | 0.6403 | 146.3 | 50.5 | |
|
previous
or next observation for the same group /

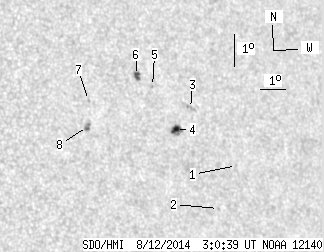

back to the solar disc SDO HMI 2014-08-12 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.54 | 11.54 | 166.13 | 42.69 | 280.02 | 0.6769 | 492.0 | 342.2 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 10.30 | 165.15 | 41.71 | 278.22 | 0.6638 | 561.0 | 448.3 | |
| 0.00 | 3.88 | 0.00 | 2.55 | 13.41 | 164.57 | 41.13 | 283.00 | 0.6590 | -453.0 | -552.2 | |
| 4.87 | 8.84 | 3.17 | 5.75 | 12.82 | 163.83 | 40.39 | 282.19 | 0.6487 | -750.0 | -591.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 14.20 | 163.17 | 39.73 | 284.42 | 0.6421 | 609.0 | 481.8 | |
| 3.07 | 4.78 | 1.96 | 3.06 | 14.57 | 162.64 | 39.20 | 285.11 | 0.6359 | 813.9 | 581.2 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 13.95 | 160.55 | 37.12 | 284.55 | 0.6073 | 333.0 | 418.6 | |
| 0.00 | 4.15 | 0.00 | 2.57 | 13.16 | 160.37 | 36.93 | 283.29 | 0.6034 | 868.0 | 717.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
