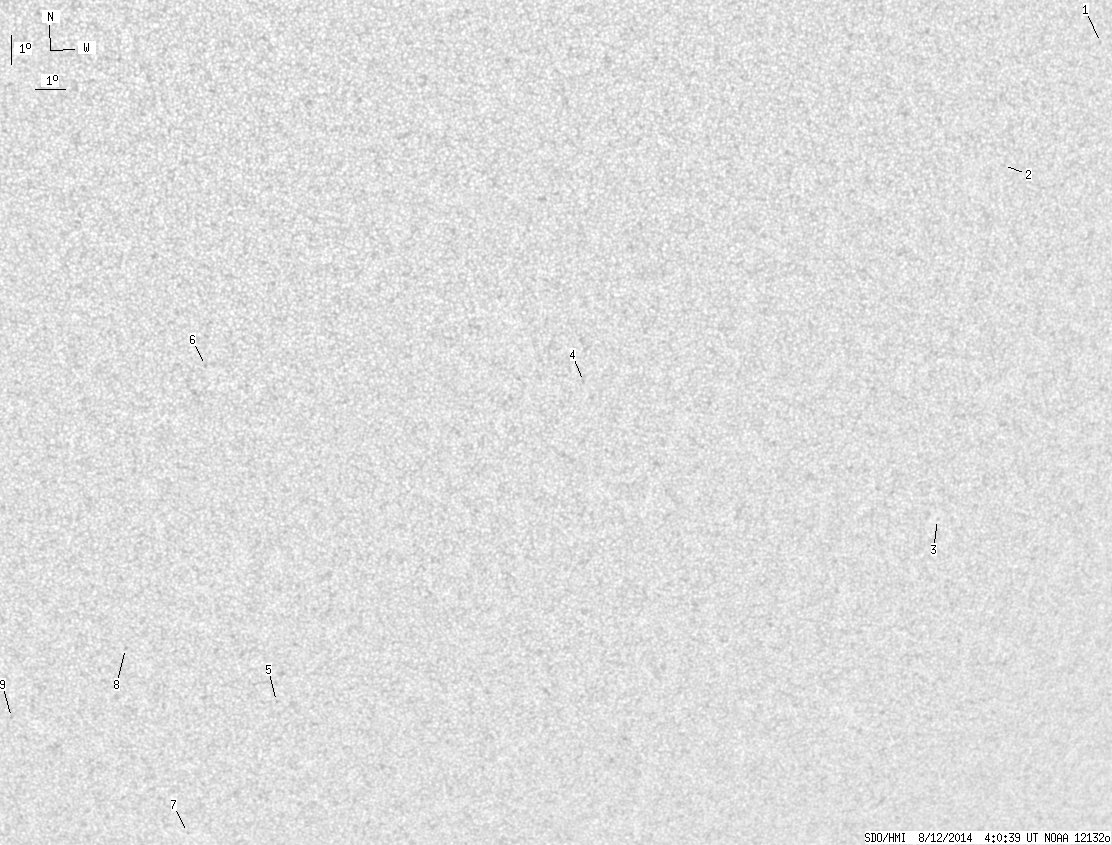

SDO HMI 2014-08-12 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.35 | 0.00 | 6.42 | -25.21 | 133.75 | 10.86 | 199.71 | 0.5955 | -267.8 | -224.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.76 | -10.70 | 153.27 | 30.38 | 240.58 | 0.5727 | 628.0 | 515.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -14.47 | 150.28 | 27.39 | 232.21 | 0.5658 | 293.0 | 297.6 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -26.51 | 150.19 | 27.30 | 217.57 | 0.6753 | 445.0 | 325.3 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -21.07 | 136.68 | 13.79 | 205.83 | 0.5127 | -675.0 | -545.1 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -32.53 | 126.93 | 4.04 | 185.40 | 0.6345 | -550.0 | -499.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -20.31 | 124.23 | 1.34 | 182.79 | 0.4533 | -802.0 | -681.3 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -37.86 | 123.77 | 0.88 | 181.00 | 0.7015 | -534.0 | -467.6 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -30.46 | 121.52 | -1.37 | 178.04 | 0.6037 | -694.0 | -500.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -33.17 | 117.32 | -5.56 | 172.75 | 0.6452 | -521.0 | -387.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
