SDO HMI 2014-08-12 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.21 | 31.94 | 5.41 | 20.94 | 13.31 | 163.27 | 40.93 | 282.88 | 0.6562 | -131.2 | -47.3 | |
|
previous
or next observation for the same group /

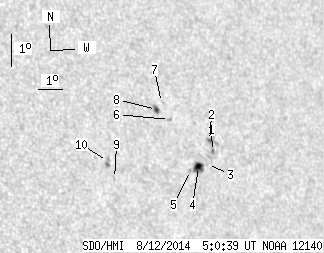

back to the solar disc SDO HMI 2014-08-12 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 3.16 | 0.30 | 2.11 | 13.17 | 164.69 | 42.35 | 282.47 | 0.6741 | -560.0 | -370.2 | |
| 0.72 | 3.97 | 0.48 | 2.66 | 13.52 | 164.64 | 42.30 | 282.99 | 0.6738 | -504.5 | -560.3 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 12.80 | 164.40 | 42.06 | 281.94 | 0.6700 | -495.0 | -371.2 | |
| 4.87 | 9.48 | 3.22 | 6.27 | 12.76 | 164.01 | 41.67 | 281.94 | 0.6651 | -727.1 | -565.2 | |
| 0.00 | 2.17 | 0.00 | 1.43 | 12.67 | 163.66 | 41.32 | 281.83 | 0.6605 | -828.0 | -567.3 | |
| 0.00 | 1.53 | 0.00 | 1.00 | 14.28 | 163.13 | 40.79 | 284.36 | 0.6558 | 648.0 | 548.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 14.82 | 162.92 | 40.58 | 285.22 | 0.6540 | 143.0 | 169.0 | |
| 2.17 | 4.69 | 1.41 | 3.05 | 14.62 | 162.67 | 40.32 | 284.96 | 0.6504 | 843.9 | 603.4 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 12.64 | 160.57 | 38.23 | 282.22 | 0.6200 | 583.0 | 511.1 | |
| 0.00 | 4.60 | 0.00 | 2.90 | 13.18 | 160.39 | 38.05 | 283.11 | 0.6184 | 815.0 | 665.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
