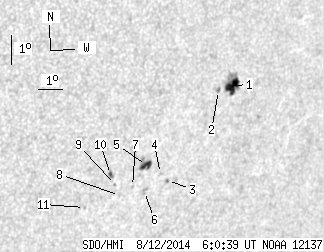

SDO HMI 2014-08-12 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.12 | 47.56 | 15.06 | 33.83 | -17.93 | 161.09 | 39.29 | 237.12 | 0.7201 | 576.6 | 369.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.63 | 23.92 | 9.81 | 17.19 | -16.67 | 162.53 | 40.74 | 239.58 | 0.7273 | 813.6 | 409.1 | |
| 0.45 | 1.81 | 0.32 | 1.29 | -16.79 | 161.98 | 40.19 | 239.09 | 0.7223 | 755.8 | 663.7 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -19.68 | 160.64 | 38.85 | 234.74 | 0.7256 | 675.0 | 560.2 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -19.42 | 160.28 | 38.48 | 234.81 | 0.7204 | 461.0 | 478.2 | |
| 5.87 | 10.38 | 4.12 | 7.29 | -19.10 | 159.61 | 37.82 | 234.75 | 0.7119 | 868.3 | 627.6 | |
| 0.00 | 3.07 | 0.00 | 2.18 | -19.98 | 159.78 | 37.99 | 233.80 | 0.7191 | 790.0 | 525.4 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -19.78 | 159.23 | 37.44 | 233.67 | 0.7123 | 650.0 | 573.4 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -20.05 | 158.77 | 36.98 | 233.02 | 0.7096 | -308.0 | -245.7 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -19.66 | 158.51 | 36.71 | 233.30 | 0.7044 | -570.0 | -452.9 | |
| 1.17 | 2.62 | 0.81 | 1.81 | -19.30 | 158.21 | 36.42 | 233.52 | 0.6991 | -700.4 | -606.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -20.36 | 157.45 | 35.65 | 231.69 | 0.6988 | -390.0 | -437.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
