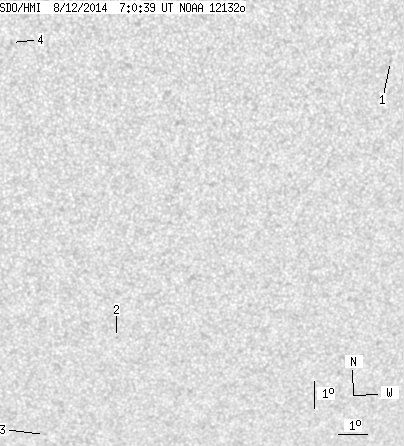

SDO HMI 2014-08-12 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.23 | 0.00 | 2.53 | -25.40 | 129.05 | 7.81 | 193.49 | 0.5484 | -452.2 | -438.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.79 | -21.05 | 136.62 | 15.38 | 208.35 | 0.5233 | -655.0 | -474.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -30.79 | 128.06 | 6.82 | 189.57 | 0.6159 | -214.0 | -340.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -34.57 | 125.68 | 4.44 | 185.54 | 0.6620 | -189.0 | -247.6 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -20.15 | 124.08 | 2.84 | 185.92 | 0.4526 | -751.0 | -597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
