SDO HMI 2014-08-12 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.36 | 140.91 | 30.92 | 172.82 | 14.21 | 54.24 | -67.01 | 77.28 | 0.9146 | -32.9 | 54.8 | |
|
previous
or next observation for the same group /

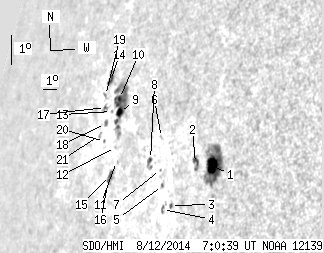

back to the solar disc SDO HMI 2014-08-12 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.83 | 53.08 | 12.26 | 54.84 | 13.81 | 59.09 | -62.16 | 77.79 | 0.8805 | -807.5 | -361.6 | |
| 0.00 | 6.41 | 0.00 | 6.88 | 13.77 | 58.00 | -63.24 | 77.83 | 0.8891 | -666.0 | -375.1 | |
| 0.54 | 1.72 | 0.60 | 1.91 | 12.35 | 56.89 | -64.36 | 79.41 | 0.8977 | -398.0 | -423.1 | |
| 0.00 | 2.62 | 0.00 | 2.97 | 12.17 | 56.38 | -64.86 | 79.59 | 0.9015 | -467.0 | -325.2 | |
| 0.00 | 0.90 | 0.00 | 1.04 | 12.89 | 56.04 | -65.20 | 78.79 | 0.9039 | -241.0 | -258.4 | |
| 0.00 | 1.26 | 0.00 | 1.49 | 14.30 | 55.21 | -66.03 | 77.22 | 0.9097 | -357.0 | -277.6 | |
| 0.00 | 0.72 | 0.00 | 0.84 | 13.34 | 55.66 | -65.59 | 78.28 | 0.9066 | -247.0 | -287.5 | |
| 0.81 | 4.78 | 0.98 | 5.76 | 13.56 | 54.76 | -66.48 | 78.02 | 0.9129 | -142.9 | -87.0 | |
| 4.51 | 44.32 | 6.21 | 61.18 | 14.69 | 51.41 | -69.84 | 76.73 | 0.9345 | 648.7 | 408.9 | |
| 1.90 | -9.00 | 2.64 | -9.00 | 15.10 | 51.11 | -70.14 | 76.28 | 0.9362 | 738.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.96 | 13.23 | 52.11 | -69.13 | 78.31 | 0.9304 | 504.0 | 426.1 | |
| 0.00 | 0.27 | 0.00 | 0.37 | 13.63 | 51.77 | -69.48 | 77.87 | 0.9325 | 381.0 | 392.3 | |
| 0.00 | 0.99 | 0.00 | 1.41 | 14.64 | 50.69 | -70.56 | 76.75 | 0.9388 | 252.0 | 180.9 | |
| 2.62 | 6.86 | 3.85 | 10.11 | 15.53 | 49.89 | -71.35 | 75.78 | 0.9432 | 270.8 | 234.4 | |
| 1.44 | 5.69 | 1.95 | 7.70 | 12.77 | 51.86 | -69.39 | 78.80 | 0.9321 | 509.5 | 422.8 | |
| 0.63 | -15.00 | 0.86 | -15.00 | 12.60 | 51.78 | -69.47 | 78.97 | 0.9326 | 465.4 | 999999 | |
| 0.54 | 3.07 | 0.79 | 4.49 | 14.70 | 50.06 | -71.18 | 76.67 | 0.9424 | 354.2 | 142.8 | |
| 0.54 | 2.62 | 0.78 | 3.76 | 14.24 | 50.41 | -70.83 | 77.18 | 0.9404 | 318.5 | 266.3 | |
| 0.00 | 1.81 | 0.00 | 2.68 | 15.05 | 49.79 | -71.46 | 76.29 | 0.9438 | 314.0 | 265.4 | |
| 0.00 | 0.99 | 0.00 | 1.41 | 13.71 | 50.70 | -70.55 | 77.75 | 0.9389 | 252.0 | 271.0 | |
| 0.00 | 2.08 | 0.00 | 3.02 | 13.87 | 50.19 | -71.05 | 77.56 | 0.9418 | 232.0 | 153.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
