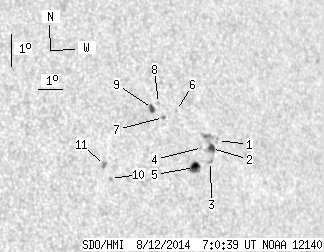

SDO HMI 2014-08-12 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.10 | 38.62 | 8.14 | 25.98 | 13.35 | 163.87 | 42.62 | 282.71 | 0.6776 | -92.5 | -123.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.24 | 13.48 | 165.21 | 43.97 | 282.73 | 0.6944 | -524.0 | -411.1 | |
| 3.43 | 13.36 | 2.34 | 9.12 | 13.26 | 164.90 | 43.66 | 282.44 | 0.6904 | -678.5 | -486.5 | |
| 0.00 | 1.62 | 0.00 | 1.11 | 12.87 | 164.77 | 43.53 | 281.89 | 0.6884 | -546.0 | -495.0 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 13.32 | 164.53 | 43.28 | 282.57 | 0.6858 | 231.0 | 266.3 | |
| 6.23 | 9.66 | 4.19 | 6.51 | 12.74 | 164.06 | 42.81 | 281.77 | 0.6794 | -787.7 | -532.4 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 14.53 | 163.69 | 42.45 | 284.45 | 0.6770 | 456.0 | 330.3 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 14.35 | 163.10 | 41.86 | 284.29 | 0.6694 | 722.0 | 640.0 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 14.79 | 162.99 | 41.75 | 284.97 | 0.6687 | 350.0 | 284.5 | |
| 2.44 | 4.06 | 1.61 | 2.69 | 14.66 | 162.71 | 41.46 | 284.82 | 0.6649 | 798.0 | 590.2 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 12.66 | 160.56 | 39.31 | 282.08 | 0.6344 | 620.0 | 569.4 | |
| 0.00 | 2.89 | 0.00 | 1.84 | 13.07 | 160.39 | 39.15 | 282.76 | 0.6328 | 801.0 | 670.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
