SDO HMI 2014-08-12 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.58 | 441.98 | 37.26 | 226.45 | 14.43 | 133.11 | 12.41 | 304.85 | 0.2525 | -774.0 | -334.0 | |
|
previous
or next observation for the same group /

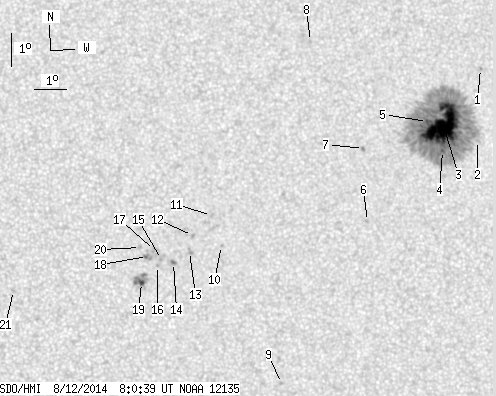

back to the solar disc SDO HMI 2014-08-12 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.50 | 135.24 | 14.54 | 306.36 | 0.3002 | 788.0 | 652.3 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 14.29 | 134.98 | 14.28 | 300.18 | 0.2778 | -52.0 | -51.9 | |
| 67.25 | 397.11 | 34.56 | 204.01 | 14.78 | 133.91 | 13.21 | 303.63 | 0.2666 | -1469.9 | -455.7 | |
| 0.99 | -3.00 | 0.51 | -3.00 | 14.01 | 133.83 | 13.14 | 301.24 | 0.2590 | -848.7 | 999999 | |
| 2.35 | -3.00 | 1.20 | -3.00 | 14.92 | 133.40 | 12.71 | 305.05 | 0.2608 | -1068.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 11.90 | 131.34 | 10.64 | 298.02 | 0.2056 | 825.0 | 582.3 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 14.14 | 131.31 | 10.61 | 307.05 | 0.2248 | -1109.0 | -900.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.46 | 129.78 | 9.08 | 321.84 | 0.2448 | -826.0 | -696.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 7.03 | 128.51 | 7.82 | 274.37 | 0.1360 | 876.0 | 653.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.25 | 126.74 | 6.04 | 308.97 | 0.1334 | 838.0 | 698.2 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.17 | 126.45 | 5.75 | 315.42 | 0.1402 | 835.0 | 612.9 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 11.56 | 125.84 | 5.15 | 315.31 | 0.1255 | 1119.0 | 900.4 | |
| 0.00 | 3.61 | 0.00 | 1.80 | 11.08 | 125.74 | 5.04 | 312.96 | 0.1184 | 958.0 | 787.4 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 10.75 | 125.24 | 4.54 | 313.77 | 0.1082 | 1184.0 | 956.4 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.84 | 124.87 | 4.17 | 316.82 | 0.1049 | 1048.0 | 846.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.66 | 124.74 | 4.04 | 316.47 | 0.1011 | 1033.0 | 888.7 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 11.12 | 124.65 | 3.96 | 320.07 | 0.1060 | 716.0 | 638.1 | |
| 0.00 | 4.69 | 0.00 | 2.34 | 10.94 | 124.44 | 3.74 | 320.53 | 0.1012 | 1236.0 | 1023.6 | |
| 1.99 | 13.45 | 0.99 | 6.69 | 10.15 | 124.24 | 3.54 | 316.44 | 0.0887 | 1227.0 | 909.4 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 11.21 | 124.22 | 3.52 | 323.83 | 0.1027 | 795.0 | 618.6 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 9.92 | 120.29 | -0.41 | 6.72 | 0.0605 | -959.0 | -705.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
