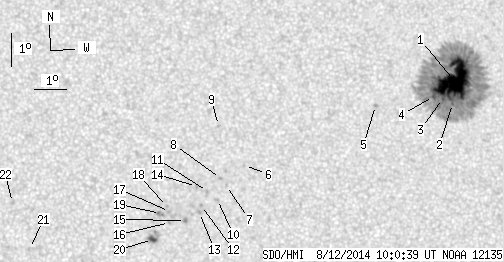

SDO HMI 2014-08-12 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.83 | 443.80 | 38.07 | 228.49 | 14.51 | 133.18 | 13.58 | 302.71 | 0.2695 | -733.9 | -339.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.77 | 407.72 | 36.02 | 210.44 | 14.84 | 133.92 | 14.32 | 301.86 | 0.2827 | -1439.1 | -437.7 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 14.14 | 133.81 | 14.21 | 299.81 | 0.2755 | -940.3 | 999999 | |
| 0.81 | -1.00 | 0.42 | -1.00 | 14.30 | 133.50 | 13.89 | 300.85 | 0.2723 | -1275.3 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 14.37 | 133.21 | 13.61 | 301.57 | 0.2687 | -1186.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 14.14 | 131.33 | 11.73 | 304.47 | 0.2402 | -1047.0 | -848.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.39 | 127.11 | 7.51 | 309.06 | 0.1652 | 738.0 | 603.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.78 | 126.53 | 6.93 | 308.22 | 0.1510 | 773.0 | 611.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.00 | 126.35 | 6.75 | 310.09 | 0.1509 | 975.0 | 763.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.62 | 126.33 | 6.73 | 317.62 | 0.1698 | 803.0 | 679.5 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 11.36 | 126.24 | 6.64 | 307.07 | 0.1427 | 821.0 | 642.1 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 11.61 | 125.93 | 6.33 | 309.75 | 0.1412 | 1014.0 | 728.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.18 | 125.74 | 6.14 | 308.18 | 0.1340 | 988.0 | 808.1 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 10.97 | 125.67 | 6.07 | 307.18 | 0.1309 | 1018.0 | 825.6 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 11.77 | 125.59 | 5.99 | 312.15 | 0.1385 | 834.0 | 750.9 | |
| 0.00 | 2.35 | 0.00 | 1.17 | 10.73 | 125.23 | 5.63 | 307.71 | 0.1224 | 1152.0 | 964.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.68 | 124.73 | 5.13 | 309.89 | 0.1151 | 963.0 | 798.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.01 | 124.74 | 5.14 | 312.05 | 0.1189 | 889.0 | 732.6 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.17 | 124.68 | 5.08 | 313.34 | 0.1199 | 771.0 | 592.6 | |
| 0.00 | 3.43 | 0.00 | 1.71 | 10.96 | 124.46 | 4.86 | 313.27 | 0.1147 | 1084.0 | 982.4 | |
| 2.71 | 9.21 | 1.35 | 4.59 | 10.17 | 124.20 | 4.60 | 309.26 | 0.1023 | 1162.9 | 916.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 9.92 | 120.39 | 0.79 | 347.13 | 0.0616 | -790.0 | -495.3 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 11.32 | 119.87 | 0.27 | 356.83 | 0.0847 | 898.0 | 684.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
