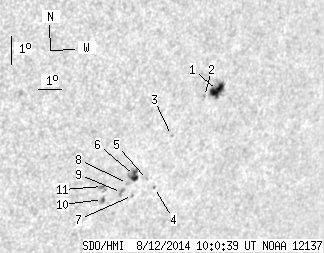

SDO HMI 2014-08-12 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.14 | 45.74 | 12.65 | 33.61 | -18.16 | 160.80 | 41.20 | 238.01 | 0.7404 | 619.6 | 343.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.74 | 18.50 | 8.00 | 13.78 | -16.59 | 162.54 | 42.94 | 240.93 | 0.7493 | 795.9 | 413.9 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -16.74 | 162.02 | 42.42 | 240.45 | 0.7448 | 771.0 | 654.7 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -17.94 | 160.94 | 41.34 | 238.38 | 0.7402 | 652.0 | 535.3 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -19.66 | 160.72 | 41.12 | 236.21 | 0.7475 | 459.0 | 348.6 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -19.36 | 160.33 | 40.73 | 236.33 | 0.7420 | 717.0 | 631.7 | |
| 5.05 | 10.38 | 3.68 | 7.55 | -19.18 | 159.73 | 40.13 | 236.16 | 0.7351 | 895.7 | 685.9 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -19.86 | 159.85 | 40.25 | 235.43 | 0.7402 | 527.0 | 486.5 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -19.43 | 159.50 | 39.90 | 235.73 | 0.7344 | 626.0 | 503.3 | |
| 0.00 | 2.80 | 0.00 | 2.04 | -19.72 | 159.34 | 39.74 | 235.28 | 0.7345 | 698.0 | 616.4 | |
| 0.72 | 2.89 | 0.52 | 2.08 | -19.89 | 158.59 | 38.99 | 234.58 | 0.7283 | -536.9 | -389.5 | |
| 0.63 | 4.15 | 0.45 | 2.98 | -19.45 | 158.46 | 38.86 | 235.03 | 0.7243 | -717.6 | -488.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
