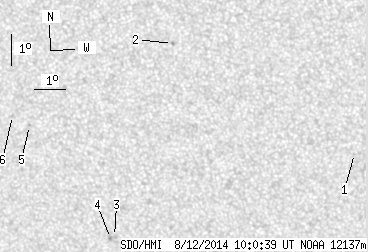

SDO HMI 2014-08-12 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.66 | 0.00 | 4.20 | -13.84 | 105.45 | -14.15 | 145.53 | 0.4215 | 713.2 | 582.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.34 | -13.45 | 112.96 | -6.64 | 161.71 | 0.3600 | 431.0 | 400.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -10.04 | 107.35 | -12.25 | 143.46 | 0.3524 | 744.0 | 566.9 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -16.32 | 105.13 | -14.47 | 148.03 | 0.4549 | 580.0 | 488.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -16.39 | 104.99 | -14.61 | 147.88 | 0.4569 | 894.0 | 730.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -12.79 | 102.62 | -16.98 | 138.80 | 0.4342 | 843.0 | 674.4 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -12.48 | 102.08 | -17.52 | 137.44 | 0.4363 | 787.0 | 631.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
