SDO HMI 2014-08-12 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.13 | 60.83 | 14.34 | 43.04 | 13.43 | 164.28 | 45.78 | 282.47 | 0.7161 | -166.9 | -155.5 | |
|
previous
or next observation for the same group /

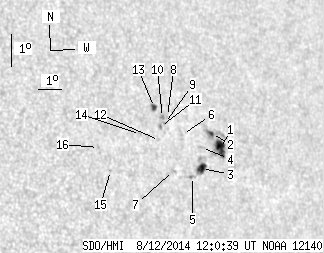

back to the solar disc SDO HMI 2014-08-12 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.56 | 17.96 | 7.60 | 12.91 | 13.28 | 165.27 | 46.77 | 282.17 | 0.7277 | -765.0 | -529.9 | |
| 1.80 | 11.28 | 1.29 | 8.10 | 13.77 | 164.98 | 46.48 | 282.87 | 0.7248 | -731.4 | -407.6 | |
| 5.69 | 11.82 | 4.02 | 8.36 | 12.75 | 164.28 | 45.78 | 281.51 | 0.7156 | -730.4 | -431.0 | |
| 0.00 | 2.35 | 0.00 | 1.66 | 13.38 | 164.43 | 45.93 | 282.38 | 0.7179 | -250.0 | -203.4 | |
| 0.00 | 2.44 | 0.00 | 1.71 | 12.54 | 163.83 | 45.33 | 281.25 | 0.7101 | -889.0 | -692.9 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 13.84 | 163.70 | 45.19 | 283.10 | 0.7096 | -193.0 | -177.6 | |
| 0.00 | 1.90 | 0.00 | 1.31 | 12.78 | 163.04 | 44.54 | 281.67 | 0.7008 | 319.0 | 320.6 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 14.44 | 163.18 | 44.68 | 284.01 | 0.7041 | 538.0 | 443.9 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 14.24 | 163.00 | 44.50 | 283.75 | 0.7017 | 730.0 | 659.4 | |
| 0.00 | 2.17 | 0.00 | 1.50 | 14.43 | 162.96 | 44.46 | 284.02 | 0.7014 | 795.0 | 641.3 | |
| 0.00 | 1.90 | 0.00 | 1.31 | 14.16 | 162.80 | 44.30 | 283.66 | 0.6992 | 843.0 | 647.2 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 13.74 | 162.65 | 44.15 | 283.08 | 0.6970 | 558.0 | 569.3 | |
| 2.08 | 3.25 | 1.43 | 2.24 | 14.76 | 162.69 | 44.19 | 284.53 | 0.6986 | 743.6 | 595.6 | |
| 0.00 | 1.44 | 0.00 | 0.98 | 13.98 | 161.89 | 43.39 | 283.53 | 0.6879 | 449.0 | 381.1 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 12.99 | 160.38 | 41.88 | 282.25 | 0.6680 | 662.0 | 499.9 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 13.72 | 160.04 | 41.54 | 283.40 | 0.6645 | 672.0 | 576.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
