SDO HMI 2014-08-12 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.89 | 45.45 | 10.53 | 34.39 | -18.00 | 160.91 | 42.96 | 239.22 | 0.7569 | 540.6 | 318.1 | |
|
previous
or next observation for the same group /

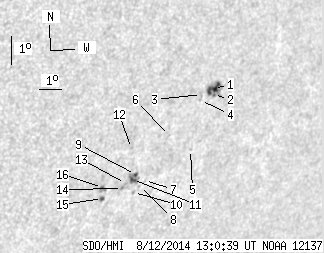

back to the solar disc SDO HMI 2014-08-12 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.03 | 18.32 | 6.15 | 14.05 | -16.49 | 162.48 | 44.53 | 241.89 | 0.7647 | 787.0 | 289.3 | |
| 0.36 | -1.00 | 0.28 | -1.00 | -16.69 | 162.54 | 44.59 | 241.67 | 0.7662 | 549.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.17 | -16.64 | 161.99 | 44.04 | 241.45 | 0.7606 | 523.0 | 425.8 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -16.84 | 162.01 | 44.06 | 241.22 | 0.7617 | 590.0 | 482.1 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -18.46 | 162.06 | 44.11 | 239.32 | 0.7699 | 544.0 | 463.5 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -17.91 | 160.96 | 43.01 | 239.38 | 0.7565 | 610.0 | 498.6 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -19.35 | 160.31 | 42.36 | 237.31 | 0.7577 | 263.0 | 336.4 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -19.54 | 160.16 | 42.21 | 236.99 | 0.7572 | 481.0 | 375.1 | |
| 1.26 | 9.83 | 0.95 | 7.37 | -19.11 | 159.85 | 41.90 | 237.31 | 0.7520 | 844.1 | 689.4 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -19.72 | 159.95 | 42.00 | 236.66 | 0.7563 | 545.0 | 413.4 | |
| 2.53 | -9.00 | 1.89 | -9.00 | -19.27 | 159.77 | 41.82 | 237.08 | 0.7521 | 891.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -18.21 | 159.40 | 41.45 | 238.12 | 0.7428 | 705.0 | 597.1 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -19.39 | 159.50 | 41.55 | 236.79 | 0.7501 | 548.0 | 547.6 | |
| 0.00 | 1.35 | 0.00 | 1.01 | -19.55 | 159.42 | 41.47 | 236.55 | 0.7502 | 750.0 | 592.1 | |
| 1.08 | 2.26 | 0.80 | 1.67 | -19.82 | 158.65 | 40.70 | 235.76 | 0.7443 | -496.4 | -345.0 | |
| 0.63 | 4.06 | 0.46 | 2.99 | -19.44 | 158.53 | 40.58 | 236.13 | 0.7411 | -693.1 | -553.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
