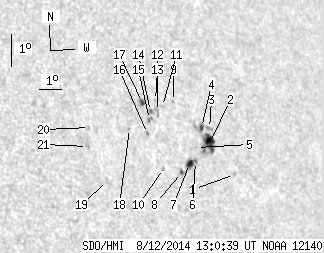

SDO HMI 2014-08-12 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.11 | 70.46 | 15.20 | 50.22 | 13.55 | 164.18 | 46.23 | 282.61 | 0.7215 | -105.1 | -70.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.93 | 12.26 | 166.22 | 48.27 | 280.68 | 0.7444 | 484.0 | 445.0 | |
| 12.18 | 23.55 | 8.86 | 17.11 | 13.32 | 165.32 | 47.37 | 282.18 | 0.7348 | -773.2 | -582.4 | |
| 0.00 | 2.62 | 0.00 | 1.91 | 13.75 | 165.44 | 47.49 | 282.74 | 0.7364 | -427.0 | -347.4 | |
| 1.35 | 7.49 | 0.98 | 5.42 | 13.81 | 165.08 | 47.13 | 282.86 | 0.7323 | -726.2 | -491.1 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 13.22 | 164.70 | 46.75 | 282.09 | 0.7274 | -348.0 | -351.2 | |
| 0.27 | 7.76 | 0.19 | 5.54 | 12.80 | 164.55 | 46.60 | 281.52 | 0.7254 | -422.0 | -500.5 | |
| 3.97 | -6.00 | 2.83 | -6.00 | 12.76 | 164.27 | 46.32 | 281.49 | 0.7220 | -758.1 | 999999 | |
| 0.81 | 2.35 | 0.58 | 1.66 | 12.52 | 163.85 | 45.90 | 281.18 | 0.7169 | -708.4 | -609.1 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 14.70 | 164.04 | 46.09 | 284.19 | 0.7211 | 496.0 | 331.0 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 12.70 | 163.09 | 45.14 | 281.50 | 0.7079 | 524.0 | 445.8 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 14.59 | 163.51 | 45.56 | 284.10 | 0.7148 | -176.0 | -111.8 | |
| 0.00 | 3.52 | 0.00 | 2.47 | 14.45 | 163.25 | 45.30 | 283.95 | 0.7115 | 347.0 | 329.1 | |
| 0.00 | 1.26 | 0.00 | 0.89 | 14.79 | 163.25 | 45.30 | 284.42 | 0.7120 | 539.0 | 395.1 | |
| 0.54 | 1.71 | 0.38 | 1.20 | 14.48 | 162.95 | 45.00 | 284.02 | 0.7079 | 741.3 | 646.0 | |
| 0.00 | 3.16 | 0.00 | 2.20 | 14.24 | 162.84 | 44.89 | 283.70 | 0.7064 | 887.0 | 714.5 | |
| 0.00 | 1.62 | 0.00 | 1.13 | 13.82 | 162.65 | 44.70 | 283.13 | 0.7036 | 724.0 | 572.4 | |
| 1.99 | 3.25 | 1.38 | 2.26 | 14.78 | 162.67 | 44.72 | 284.48 | 0.7050 | 761.7 | 612.3 | |
| 0.00 | 1.17 | 0.00 | 0.81 | 14.03 | 161.91 | 43.96 | 283.52 | 0.6949 | 590.0 | 450.7 | |
| 0.00 | 2.17 | 0.00 | 1.45 | 12.53 | 160.62 | 42.67 | 281.48 | 0.6775 | 487.0 | 396.2 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 14.19 | 160.22 | 42.27 | 283.99 | 0.6744 | 510.0 | 397.0 | |
| 0.00 | 1.99 | 0.00 | 1.32 | 13.62 | 160.01 | 42.06 | 283.17 | 0.6709 | 630.0 | 572.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
