SDO HMI 2014-08-12 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.11 | 438.50 | 35.99 | 228.21 | 14.70 | 133.38 | 15.99 | 298.97 | 0.3055 | -691.5 | -354.2 | |
|
previous
or next observation for the same group /

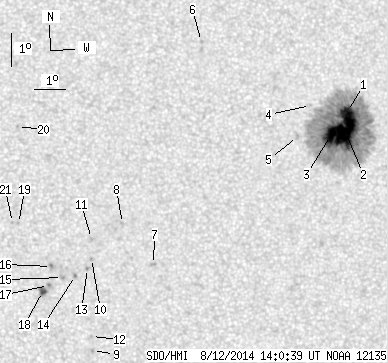

back to the solar disc SDO HMI 2014-08-12 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.74 | 407.59 | 5.10 | 212.62 | 15.47 | 134.15 | 16.75 | 300.04 | 0.3223 | -1159.9 | -424.6 | |
| 40.24 | -1.00 | 21.00 | -1.00 | 14.86 | 134.03 | 16.64 | 298.47 | 0.3162 | -1406.6 | 999999 | |
| 16.24 | -1.00 | 8.45 | -1.00 | 14.75 | 133.53 | 16.14 | 298.83 | 0.3081 | -1552.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 15.69 | 132.95 | 15.56 | 302.40 | 0.3071 | -605.0 | -466.4 | |
| 0.00 | 2.07 | 0.00 | 1.07 | 14.75 | 132.46 | 15.06 | 300.40 | 0.2926 | -906.0 | -699.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.76 | 129.55 | 12.15 | 314.63 | 0.2829 | -803.0 | -621.6 | |
| 0.00 | 2.35 | 0.00 | 1.18 | 10.96 | 127.66 | 10.26 | 294.50 | 0.1930 | 853.0 | 686.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 12.23 | 126.73 | 9.33 | 302.63 | 0.1890 | 748.0 | 598.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.38 | 125.68 | 8.28 | 283.48 | 0.1471 | 960.0 | 739.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.18 | 125.72 | 8.32 | 300.28 | 0.1651 | 831.0 | 688.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.79 | 125.74 | 8.34 | 303.36 | 0.1708 | 863.0 | 711.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.81 | 125.65 | 8.26 | 286.32 | 0.1486 | 853.0 | 641.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 10.88 | 125.58 | 8.19 | 299.02 | 0.1607 | 1031.0 | 742.5 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 10.67 | 125.20 | 7.81 | 298.97 | 0.1533 | 904.0 | 774.4 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 10.62 | 124.80 | 7.40 | 299.92 | 0.1467 | 866.0 | 734.6 | |
| 0.00 | 2.44 | 0.00 | 1.22 | 10.96 | 124.46 | 7.07 | 303.08 | 0.1448 | 1078.0 | 857.4 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 10.38 | 124.36 | 6.96 | 299.93 | 0.1381 | 1017.0 | 823.9 | |
| 2.89 | 4.96 | 1.44 | 2.48 | 10.20 | 124.17 | 6.77 | 299.43 | 0.1338 | 1148.0 | 914.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.28 | 123.47 | 6.07 | 314.49 | 0.1455 | 934.0 | 745.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.25 | 123.52 | 6.12 | 326.07 | 0.1851 | 786.0 | 618.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.32 | 123.28 | 5.88 | 315.54 | 0.1436 | 864.0 | 679.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
