SDO HMI 2014-08-12 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.57 | 164.86 | 31.92 | 177.25 | 13.91 | 54.17 | -63.23 | 77.65 | 0.8873 | -80.4 | 97.9 | |
|
previous
or next observation for the same group /

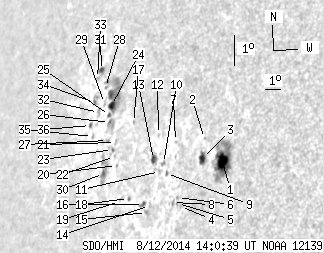

back to the solar disc SDO HMI 2014-08-12 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.92 | 49.62 | 10.08 | 45.84 | 13.82 | 59.27 | -58.13 | 77.73 | 0.8460 | -704.3 | -319.7 | |
| 0.00 | 0.63 | 0.00 | 0.61 | 14.41 | 57.93 | -59.47 | 77.07 | 0.8580 | -490.0 | -450.3 | |
| 4.51 | 7.13 | 4.31 | 6.81 | 13.80 | 58.06 | -59.34 | 77.78 | 0.8568 | -456.9 | -266.3 | |
| 0.00 | 0.90 | 0.00 | 0.88 | 12.24 | 57.31 | -60.09 | 79.60 | 0.8633 | -211.0 | -313.8 | |
| 0.00 | 0.90 | 0.00 | 0.89 | 12.31 | 57.09 | -60.31 | 79.52 | 0.8651 | -457.0 | -531.9 | |
| 0.00 | 0.81 | 0.00 | 0.80 | 12.49 | 57.02 | -60.38 | 79.31 | 0.8657 | -576.0 | -566.1 | |
| 0.00 | 0.72 | 0.00 | 0.73 | 14.15 | 56.19 | -61.21 | 77.40 | 0.8727 | -511.0 | -466.8 | |
| 0.00 | 1.80 | 0.00 | 1.79 | 12.31 | 56.77 | -60.63 | 79.51 | 0.8679 | -563.0 | -492.1 | |
| 0.45 | 1.80 | 0.46 | 1.82 | 13.14 | 56.05 | -61.35 | 78.56 | 0.8739 | -362.6 | -320.6 | |
| 0.00 | 1.89 | 0.00 | 1.94 | 13.42 | 55.73 | -61.67 | 78.23 | 0.8765 | -520.0 | -428.4 | |
| 0.00 | 1.26 | 0.00 | 1.30 | 13.15 | 55.58 | -61.82 | 78.54 | 0.8778 | -316.0 | -265.3 | |
| 0.00 | 0.27 | 0.00 | 0.28 | 14.25 | 55.00 | -62.39 | 77.29 | 0.8824 | -173.0 | -198.3 | |
| 2.89 | 4.87 | 3.01 | 5.08 | 13.47 | 55.03 | -62.37 | 78.17 | 0.8822 | -187.2 | -141.0 | |
| 0.00 | 1.80 | 0.00 | 1.86 | 12.08 | 55.36 | -62.04 | 79.76 | 0.8796 | -303.0 | -255.6 | |
| 0.00 | 2.07 | 0.00 | 2.15 | 11.85 | 55.25 | -62.15 | 80.02 | 0.8805 | -460.0 | -308.4 | |
| 0.81 | 2.62 | 0.85 | 2.74 | 12.07 | 54.96 | -62.44 | 79.76 | 0.8829 | -294.2 | -205.6 | |
| 0.00 | 0.81 | 0.00 | 0.90 | 14.44 | 53.14 | -64.25 | 77.08 | 0.8968 | 473.0 | 493.4 | |
| 0.00 | 1.44 | 0.00 | 1.56 | 12.15 | 53.89 | -63.51 | 79.65 | 0.8913 | -23.0 | -4.1 | |
| 0.00 | 0.63 | 0.00 | 0.70 | 12.00 | 53.32 | -64.08 | 79.81 | 0.8957 | -149.0 | -160.6 | |
| 0.00 | 1.26 | 0.00 | 1.43 | 13.04 | 52.61 | -64.79 | 78.62 | 0.9008 | 443.0 | 418.1 | |
| 0.00 | 1.53 | 0.00 | 1.76 | 13.72 | 52.19 | -65.21 | 77.87 | 0.9038 | 525.0 | 462.8 | |
| 0.00 | 0.81 | 0.00 | 0.93 | 13.30 | 52.34 | -65.06 | 78.34 | 0.9028 | 391.0 | 378.7 | |
| 0.36 | 1.62 | 0.42 | 1.87 | 13.49 | 52.09 | -65.31 | 78.12 | 0.9046 | 501.0 | 483.0 | |
| 4.06 | 36.00 | 4.81 | 42.62 | 14.78 | 51.29 | -66.11 | 76.68 | 0.9102 | 598.6 | 425.2 | |
| 0.81 | -24.00 | 0.96 | -24.00 | 14.47 | 51.31 | -66.09 | 77.03 | 0.9101 | 529.6 | 999999 | |
| 0.63 | 6.59 | 0.74 | 7.72 | 14.27 | 51.43 | -65.97 | 77.26 | 0.9092 | 652.7 | 466.6 | |
| 0.00 | 1.26 | 0.00 | 1.48 | 13.72 | 51.58 | -65.82 | 77.86 | 0.9082 | 500.0 | 428.6 | |
| 0.00 | 0.99 | 0.00 | 1.21 | 15.27 | 50.51 | -66.89 | 76.15 | 0.9156 | 319.0 | 304.4 | |
| 0.00 | 1.17 | 0.00 | 1.42 | 14.79 | 50.73 | -66.67 | 76.67 | 0.9141 | 408.0 | 301.4 | |
| 1.62 | 15.70 | 1.89 | 18.30 | 12.71 | 51.80 | -65.60 | 78.97 | 0.9068 | 444.4 | 343.8 | |
| 2.07 | 3.43 | 2.59 | 4.29 | 15.74 | 49.87 | -67.53 | 75.63 | 0.9198 | 323.2 | 196.7 | |
| 0.00 | 2.89 | 0.00 | 3.53 | 14.48 | 50.43 | -66.96 | 77.01 | 0.9161 | 435.0 | 348.4 | |
| 0.00 | 1.62 | 0.00 | 2.05 | 15.47 | 49.71 | -67.68 | 75.92 | 0.9209 | 392.0 | 218.4 | |
| 0.63 | 4.51 | 0.79 | 5.62 | 14.74 | 49.94 | -67.46 | 76.72 | 0.9194 | 222.7 | 283.3 | |
| 0.00 | 1.62 | 0.00 | 1.99 | 13.72 | 50.39 | -67.00 | 77.83 | 0.9165 | 258.0 | 182.3 | |
| 0.81 | 1.89 | 1.01 | 2.35 | 14.03 | 50.05 | -67.35 | 77.49 | 0.9188 | 9.8 | -20.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
