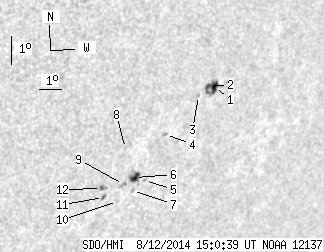

SDO HMI 2014-08-12 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.98 | 42.14 | 10.81 | 32.43 | -18.19 | 160.79 | 43.95 | 239.54 | 0.7674 | 507.3 | 381.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.96 | 15.88 | 3.89 | 12.42 | -16.49 | 162.64 | 45.79 | 242.51 | 0.7771 | 640.8 | 543.8 | |
| 2.26 | -1.00 | 1.76 | -1.00 | -16.44 | 162.35 | 45.50 | 242.43 | 0.7740 | 815.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -16.70 | 161.97 | 45.13 | 241.93 | 0.7715 | 556.0 | 544.0 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -17.89 | 160.86 | 44.01 | 239.95 | 0.7662 | 609.0 | 532.6 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -19.38 | 160.40 | 43.56 | 237.95 | 0.7692 | 433.0 | 332.0 | |
| 5.23 | 11.28 | 4.00 | 8.62 | -19.24 | 159.91 | 43.07 | 237.84 | 0.7639 | 862.5 | 577.8 | |
| 0.00 | 2.26 | 0.00 | 1.73 | -19.68 | 159.97 | 43.13 | 237.36 | 0.7667 | 438.0 | 350.6 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -18.22 | 159.20 | 42.35 | 238.64 | 0.7517 | 238.0 | 372.5 | |
| 0.00 | 2.98 | 0.00 | 2.26 | -19.44 | 159.49 | 42.65 | 237.37 | 0.7609 | 684.0 | 539.8 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -20.00 | 159.42 | 42.57 | 236.67 | 0.7632 | 363.0 | 345.5 | |
| 0.63 | 2.44 | 0.48 | 1.84 | -19.81 | 158.74 | 41.90 | 236.49 | 0.7558 | -458.0 | -337.6 | |
| 0.90 | 3.07 | 0.68 | 2.30 | -19.50 | 158.55 | 41.71 | 236.75 | 0.7522 | -703.5 | -536.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
