SDO HMI 2014-08-12 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.86 | 170.88 | 29.01 | 179.21 | 14.00 | 54.34 | -62.50 | 77.55 | 0.8816 | -87.0 | 106.5 | |
|
previous
or next observation for the same group /

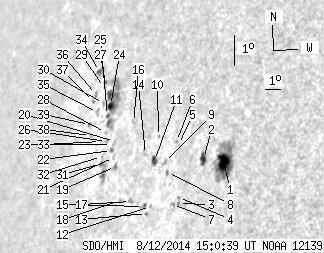

back to the solar disc SDO HMI 2014-08-12 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.26 | 55.93 | 12.07 | 50.90 | 13.83 | 59.25 | -57.60 | 77.70 | 0.8412 | -731.6 | -291.2 | |
| 4.15 | 6.86 | 3.90 | 6.45 | 13.82 | 58.06 | -58.78 | 77.75 | 0.8519 | -448.1 | -290.3 | |
| 0.00 | 1.08 | 0.00 | 1.04 | 12.33 | 57.10 | -59.74 | 79.50 | 0.8602 | -546.0 | -551.2 | |
| 0.00 | 1.08 | 0.00 | 1.05 | 12.51 | 57.04 | -59.81 | 79.29 | 0.8608 | -596.0 | -520.5 | |
| 0.00 | 1.44 | 0.00 | 1.42 | 14.09 | 56.38 | -60.46 | 77.45 | 0.8665 | -579.0 | -430.3 | |
| 0.00 | 1.08 | 0.00 | 1.07 | 14.17 | 56.22 | -60.62 | 77.37 | 0.8679 | -522.0 | -468.0 | |
| 0.00 | 1.80 | 0.00 | 1.76 | 12.26 | 56.75 | -60.09 | 79.57 | 0.8633 | -509.0 | -418.8 | |
| 0.00 | 1.89 | 0.00 | 1.89 | 13.19 | 56.07 | -60.78 | 78.50 | 0.8691 | -392.0 | -369.3 | |
| 0.00 | 2.44 | 0.00 | 2.44 | 13.47 | 55.75 | -61.09 | 78.17 | 0.8718 | -536.0 | -405.7 | |
| 0.00 | 0.81 | 0.00 | 0.83 | 14.21 | 55.02 | -61.82 | 77.33 | 0.8778 | -186.0 | -165.8 | |
| 2.98 | 4.60 | 3.05 | 4.71 | 13.47 | 55.09 | -61.75 | 78.18 | 0.8772 | -219.0 | -159.1 | |
| 0.00 | 1.08 | 0.00 | 1.10 | 12.07 | 55.41 | -61.43 | 79.78 | 0.8746 | -315.0 | -299.2 | |
| 0.00 | 1.44 | 0.00 | 1.47 | 11.84 | 55.24 | -61.60 | 80.04 | 0.8761 | -433.0 | -350.4 | |
| 0.00 | 1.35 | 0.00 | 1.41 | 13.59 | 54.43 | -62.41 | 78.04 | 0.8825 | 257.0 | 258.2 | |
| 0.00 | 2.07 | 0.00 | 2.13 | 12.03 | 54.97 | -61.88 | 79.82 | 0.8783 | -384.0 | -250.4 | |
| 0.00 | 1.62 | 0.00 | 1.77 | 14.46 | 53.17 | -63.68 | 77.05 | 0.8924 | 469.0 | 393.8 | |
| 0.00 | 2.80 | 0.00 | 2.96 | 12.09 | 54.06 | -62.78 | 79.73 | 0.8856 | -236.0 | -91.8 | |
| 0.00 | 1.53 | 0.00 | 1.66 | 12.06 | 53.39 | -63.46 | 79.75 | 0.8909 | -265.0 | -150.1 | |
| 0.00 | 2.35 | 0.00 | 2.61 | 13.03 | 52.59 | -64.26 | 78.65 | 0.8969 | 506.0 | 446.0 | |
| 0.00 | 0.27 | 0.00 | 0.30 | 13.77 | 52.15 | -64.70 | 77.82 | 0.9001 | 563.0 | 514.7 | |
| 0.00 | 1.80 | 0.00 | 2.02 | 13.29 | 52.32 | -64.53 | 78.36 | 0.8989 | 366.0 | 400.1 | |
| 0.45 | 1.62 | 0.51 | 1.83 | 13.48 | 52.07 | -64.77 | 78.14 | 0.9007 | 559.2 | 500.9 | |
| 0.00 | 0.36 | 0.00 | 0.41 | 13.66 | 51.98 | -64.86 | 77.94 | 0.9013 | 505.0 | 565.8 | |
| 3.61 | 42.21 | 4.19 | 48.86 | 14.80 | 51.27 | -65.57 | 76.67 | 0.9064 | 651.8 | 463.7 | |
| 0.72 | -24.00 | 0.84 | -24.00 | 14.49 | 51.23 | -65.62 | 77.02 | 0.9068 | 554.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.87 | 13.71 | 51.58 | -65.27 | 77.88 | 0.9043 | 518.0 | 460.9 | |
| 0.45 | 1.44 | 0.54 | 1.73 | 15.45 | 50.49 | -66.35 | 75.96 | 0.9119 | 460.6 | 359.8 | |
| 0.00 | 0.90 | 0.00 | 1.04 | 13.97 | 51.36 | -65.48 | 77.59 | 0.9058 | 589.0 | 544.7 | |
| 0.00 | 0.81 | 0.00 | 0.97 | 15.29 | 50.51 | -66.33 | 76.13 | 0.9117 | 369.0 | 332.2 | |
| 0.00 | 1.53 | 0.00 | 1.82 | 14.81 | 50.73 | -66.12 | 76.65 | 0.9103 | 358.0 | 283.6 | |
| 0.81 | 9.74 | 0.93 | 11.13 | 13.02 | 51.56 | -65.29 | 78.64 | 0.9045 | 432.0 | 348.0 | |
| 0.00 | 0.90 | 0.00 | 1.04 | 13.23 | 51.45 | -65.39 | 78.41 | 0.9053 | 471.0 | 430.3 | |
| 0.00 | 0.27 | 0.00 | 0.32 | 13.67 | 51.15 | -65.70 | 77.92 | 0.9074 | 481.0 | 458.0 | |
| 1.89 | 4.60 | 2.32 | 5.63 | 15.72 | 49.83 | -67.01 | 75.65 | 0.9164 | 352.1 | 284.0 | |
| 0.00 | 2.98 | 0.00 | 3.56 | 14.50 | 50.44 | -66.41 | 76.99 | 0.9123 | 476.0 | 346.7 | |
| 0.00 | 2.35 | 0.00 | 2.86 | 15.02 | 50.04 | -66.81 | 76.42 | 0.9150 | 372.0 | 367.1 | |
| 0.00 | 1.44 | 0.00 | 1.76 | 14.79 | 49.94 | -66.90 | 76.67 | 0.9157 | 184.0 | 131.2 | |
| 0.00 | 1.08 | 0.00 | 1.30 | 13.77 | 50.31 | -66.54 | 77.79 | 0.9133 | 277.0 | 240.0 | |
| 0.54 | 1.71 | 0.66 | 2.09 | 14.08 | 50.05 | -66.80 | 77.44 | 0.9150 | -17.2 | -5.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
