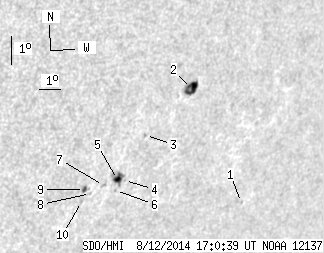

SDO HMI 2014-08-12 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.79 | 34.79 | 11.72 | 27.49 | -18.20 | 161.08 | 45.34 | 240.24 | 0.7806 | 480.3 | 371.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.82 | -20.62 | 166.57 | 50.83 | 240.13 | 0.8389 | 291.0 | 295.9 | |
| 10.10 | 13.80 | 8.07 | 11.02 | -16.48 | 162.53 | 46.79 | 243.00 | 0.7867 | 662.1 | 495.9 | |
| 0.00 | 1.35 | 0.00 | 1.06 | -17.88 | 160.87 | 45.13 | 240.54 | 0.7769 | 659.0 | 451.3 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -19.33 | 160.40 | 44.66 | 238.60 | 0.7794 | 298.0 | 317.3 | |
| 3.61 | 11.00 | 2.82 | 8.60 | -19.27 | 160.06 | 44.32 | 238.49 | 0.7759 | 846.9 | 578.7 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -19.64 | 160.10 | 44.36 | 238.08 | 0.7781 | 492.0 | 403.9 | |
| 0.00 | 2.16 | 0.00 | 1.68 | -19.42 | 159.48 | 43.75 | 238.00 | 0.7712 | 639.0 | 535.0 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -19.65 | 158.98 | 43.24 | 237.46 | 0.7677 | -310.0 | -307.2 | |
| 1.08 | 2.34 | 0.83 | 1.79 | -19.49 | 158.66 | 42.92 | 237.46 | 0.7638 | -669.8 | -556.4 | |
| 0.00 | 1.35 | 0.00 | 1.04 | -19.89 | 158.66 | 42.93 | 237.00 | 0.7659 | -254.0 | -204.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
