SDO HMI 2014-08-12 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.34 | 68.63 | 27.21 | 51.36 | 13.58 | 164.57 | 48.84 | 282.41 | 0.7515 | -259.6 | -150.0 | |
|
previous
or next observation for the same group /

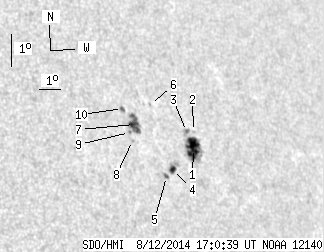

back to the solar disc SDO HMI 2014-08-12 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.01 | 33.10 | 16.00 | 25.22 | 13.34 | 165.52 | 49.78 | 282.01 | 0.7619 | -804.4 | -380.9 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 13.85 | 165.67 | 49.93 | 282.68 | 0.7639 | -246.0 | -151.6 | |
| 0.00 | 3.16 | 0.00 | 2.40 | 13.88 | 165.34 | 49.60 | 282.74 | 0.7602 | -563.0 | -564.8 | |
| 2.98 | 7.94 | 2.22 | 5.91 | 12.79 | 164.36 | 48.63 | 281.36 | 0.7487 | -672.1 | -378.6 | |
| 1.08 | 2.53 | 0.80 | 1.87 | 12.60 | 164.03 | 48.30 | 281.12 | 0.7448 | -703.6 | -618.1 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 14.84 | 163.90 | 48.16 | 284.14 | 0.7450 | 551.0 | 435.7 | |
| 10.37 | 15.51 | 7.54 | 11.28 | 14.30 | 162.99 | 47.25 | 283.50 | 0.7341 | 711.3 | 461.1 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 13.82 | 162.77 | 47.03 | 282.87 | 0.7311 | 408.0 | 453.7 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 14.07 | 162.70 | 46.96 | 283.23 | 0.7306 | 592.0 | 644.8 | |
| 0.90 | 2.16 | 0.65 | 1.56 | 14.82 | 162.58 | 46.85 | 284.27 | 0.7300 | 707.2 | 572.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
