SDO HMI 2014-08-12 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.76 | 422.69 | 38.89 | 222.52 | 14.75 | 133.35 | 18.16 | 296.29 | 0.3373 | -752.5 | -330.2 | |
|
previous
or next observation for the same group /

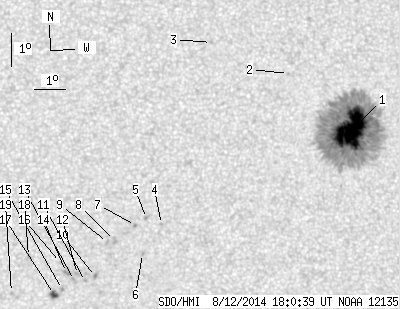

back to the solar disc SDO HMI 2014-08-12 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.87 | 389.54 | 37.44 | 205.72 | 15.01 | 133.98 | 18.79 | 296.28 | 0.3485 | -1482.5 | -419.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.80 | 132.05 | 16.87 | 303.43 | 0.3343 | -667.0 | -591.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.83 | 129.60 | 14.42 | 310.14 | 0.3114 | -788.0 | -643.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.29 | 127.62 | 12.43 | 296.18 | 0.2355 | 793.0 | 593.5 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 12.49 | 127.15 | 11.96 | 297.78 | 0.2298 | 946.0 | 684.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 11.42 | 126.97 | 11.79 | 293.74 | 0.2198 | 805.0 | 731.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.28 | 126.79 | 11.61 | 297.63 | 0.2229 | 984.0 | 783.7 | |
| 0.00 | 3.43 | 0.00 | 1.74 | 11.84 | 126.11 | 10.92 | 297.12 | 0.2093 | 759.0 | 728.5 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 11.78 | 125.88 | 10.70 | 297.33 | 0.2055 | 919.0 | 713.0 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 10.76 | 125.46 | 10.28 | 293.41 | 0.1919 | 990.0 | 794.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.61 | 125.15 | 9.96 | 293.31 | 0.1860 | 827.0 | 720.5 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 10.83 | 124.90 | 9.72 | 294.90 | 0.1836 | 925.0 | 826.7 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 10.65 | 124.80 | 9.62 | 294.20 | 0.1808 | 794.0 | 740.9 | |
| 0.00 | 2.71 | 0.00 | 1.36 | 10.90 | 124.56 | 9.38 | 296.01 | 0.1788 | 1144.0 | 908.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.38 | 124.42 | 9.23 | 293.62 | 0.1731 | 974.0 | 738.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.20 | 124.38 | 9.20 | 297.99 | 0.1784 | 901.0 | 706.9 | |
| 2.89 | 5.14 | 1.45 | 2.58 | 10.23 | 124.16 | 8.98 | 293.38 | 0.1681 | 1138.2 | 860.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.41 | 123.39 | 8.20 | 301.75 | 0.1652 | 858.0 | 707.1 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 10.32 | 122.82 | 7.64 | 297.29 | 0.1479 | 636.0 | 506.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
