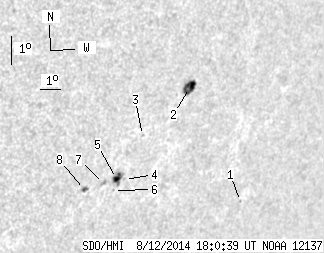

SDO HMI 2014-08-12 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.16 | 30.94 | 11.34 | 24.73 | -18.09 | 161.22 | 46.03 | 240.72 | 0.7866 | 581.7 | 393.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.83 | -20.61 | 166.69 | 51.50 | 240.43 | 0.8444 | 456.0 | 382.2 | |
| 10.01 | 13.26 | 8.08 | 10.70 | -16.45 | 162.53 | 47.34 | 243.28 | 0.7919 | 694.2 | 376.9 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -17.88 | 160.81 | 45.63 | 240.78 | 0.7817 | 518.0 | 519.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.31 | 160.48 | 45.29 | 238.95 | 0.7852 | 308.0 | 297.0 | |
| 3.07 | 9.29 | 2.42 | 7.35 | -19.25 | 160.09 | 44.91 | 238.82 | 0.7812 | 868.4 | 610.0 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -19.65 | 160.09 | 44.91 | 238.36 | 0.7832 | 415.0 | 381.6 | |
| 0.00 | 2.71 | 0.00 | 2.12 | -19.37 | 159.54 | 44.36 | 238.39 | 0.7767 | 639.0 | 530.4 | |
| 1.08 | 2.98 | 0.84 | 2.30 | -19.50 | 158.73 | 43.55 | 237.79 | 0.7698 | -645.0 | -542.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
