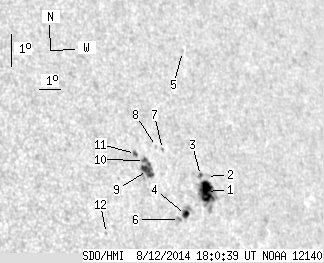

SDO HMI 2014-08-12 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.27 | 79.07 | 25.22 | 59.89 | 13.68 | 164.63 | 49.44 | 282.50 | 0.7583 | -264.5 | -99.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.30 | 37.96 | 14.88 | 29.27 | 13.38 | 165.56 | 50.38 | 282.03 | 0.7685 | -818.4 | -406.9 | |
| 0.00 | 3.25 | 0.00 | 2.51 | 13.84 | 165.70 | 50.51 | 282.61 | 0.7702 | -144.0 | -135.3 | |
| 0.72 | 2.07 | 0.55 | 1.59 | 13.89 | 165.42 | 50.24 | 282.70 | 0.7672 | -624.4 | -551.9 | |
| 3.52 | 8.48 | 2.65 | 6.39 | 12.78 | 164.38 | 49.19 | 281.30 | 0.7550 | -635.6 | -396.9 | |
| 0.00 | 1.17 | 0.00 | 0.92 | 17.72 | 165.85 | 50.67 | 287.62 | 0.7753 | 356.0 | 388.0 | |
| 0.00 | 1.98 | 0.00 | 1.48 | 12.65 | 164.06 | 48.87 | 281.15 | 0.7514 | -746.0 | -654.0 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 14.83 | 163.86 | 48.68 | 284.07 | 0.7507 | 443.0 | 413.5 | |
| 0.00 | 1.35 | 0.00 | 1.01 | 14.95 | 163.61 | 48.43 | 284.25 | 0.7480 | 351.0 | 329.8 | |
| 7.30 | 18.67 | 5.36 | 13.70 | 14.25 | 162.98 | 47.80 | 283.39 | 0.7403 | 722.3 | 538.5 | |
| 1.26 | -9.00 | 0.93 | -9.00 | 14.57 | 162.93 | 47.75 | 283.82 | 0.7400 | 655.5 | 999999 | |
| 1.17 | 2.34 | 0.85 | 1.71 | 14.81 | 162.58 | 47.40 | 284.19 | 0.7363 | 691.2 | 612.4 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 12.50 | 160.66 | 45.48 | 281.17 | 0.7118 | 620.0 | 476.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
