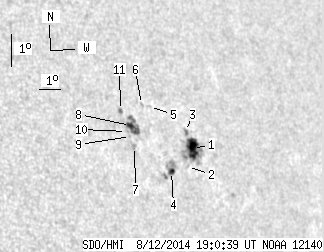

SDO HMI 2014-08-12 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.26 | 80.87 | 18.71 | 61.88 | 13.60 | 164.60 | 49.97 | 282.35 | 0.7639 | -322.8 | -95.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.22 | 37.78 | 13.44 | 29.47 | 13.40 | 165.61 | 50.98 | 282.01 | 0.7749 | -826.8 | -447.1 | |
| 0.00 | 1.08 | 0.00 | 0.84 | 12.87 | 165.21 | 50.58 | 281.35 | 0.7704 | -494.0 | -490.4 | |
| 0.00 | 3.25 | 0.00 | 2.53 | 13.94 | 165.43 | 50.80 | 282.72 | 0.7733 | -434.0 | -490.4 | |
| 2.89 | 14.07 | 2.20 | 10.70 | 12.79 | 164.40 | 49.78 | 281.28 | 0.7615 | -598.8 | -382.7 | |
| 0.00 | 1.26 | 0.00 | 0.95 | 14.84 | 163.94 | 49.31 | 284.02 | 0.7577 | 462.0 | 370.0 | |
| 0.00 | 1.44 | 0.00 | 1.08 | 14.93 | 163.58 | 48.95 | 284.18 | 0.7538 | 417.0 | 336.1 | |
| 0.00 | 2.25 | 0.00 | 1.67 | 13.69 | 162.88 | 48.25 | 282.58 | 0.7450 | 687.0 | 622.4 | |
| 3.43 | 16.05 | 2.54 | 11.91 | 14.34 | 162.88 | 48.25 | 283.46 | 0.7455 | 837.3 | 527.5 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 14.01 | 162.78 | 48.15 | 283.02 | 0.7441 | 716.0 | 524.0 | |
| 0.00 | 0.72 | 0.00 | 0.53 | 14.18 | 162.64 | 48.01 | 283.26 | 0.7427 | 274.0 | 463.4 | |
| 0.72 | 2.34 | 0.53 | 1.73 | 14.83 | 162.55 | 47.92 | 284.15 | 0.7422 | 708.4 | 637.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
