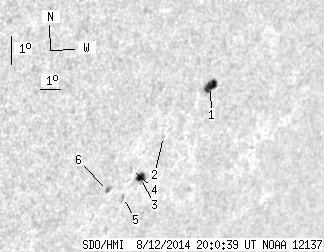

SDO HMI 2014-08-12 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.87 | 27.76 | 12.98 | 22.59 | -17.95 | 161.08 | 47.00 | 241.34 | 0.7952 | 620.8 | 272.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.74 | 12.62 | 8.04 | 10.43 | -16.42 | 162.55 | 48.47 | 243.82 | 0.8024 | 656.6 | 340.5 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -17.91 | 160.83 | 46.75 | 241.30 | 0.7924 | 566.0 | 488.8 | |
| 5.32 | 7.66 | 4.30 | 6.20 | -19.21 | 160.22 | 46.14 | 239.49 | 0.7925 | 736.8 | 485.0 | |
| 0.00 | 1.44 | 0.00 | 1.15 | -18.90 | 159.69 | 45.61 | 239.58 | 0.7862 | 741.0 | 652.5 | |
| 0.00 | 1.98 | 0.00 | 1.60 | -19.83 | 159.65 | 45.58 | 238.49 | 0.7902 | 622.0 | 474.8 | |
| 0.81 | 3.34 | 0.64 | 2.63 | -19.53 | 158.81 | 44.73 | 238.40 | 0.7810 | -713.0 | -453.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
