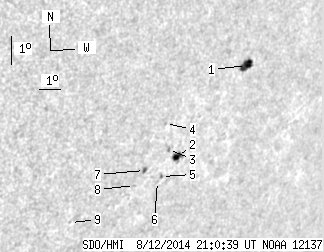

SDO HMI 2014-08-12 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.89 | 26.40 | 11.49 | 21.69 | -18.05 | 160.93 | 47.41 | 241.42 | 0.7995 | 480.0 | 288.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.48 | 11.27 | 7.08 | 9.42 | -16.40 | 162.57 | 49.05 | 244.09 | 0.8077 | 689.5 | 404.8 | |
| 4.60 | 7.48 | 3.76 | 6.12 | -19.20 | 160.27 | 46.74 | 239.81 | 0.7980 | 726.0 | 485.2 | |
| 0.00 | 1.53 | 0.00 | 1.24 | -18.92 | 159.74 | 46.22 | 239.87 | 0.7919 | 574.0 | 614.8 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -18.02 | 159.29 | 45.77 | 240.69 | 0.7837 | 461.0 | 462.9 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -19.82 | 159.75 | 46.22 | 238.84 | 0.7960 | 597.0 | 509.2 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -19.97 | 159.62 | 46.10 | 238.60 | 0.7956 | 261.0 | 260.7 | |
| 0.81 | 2.34 | 0.65 | 1.87 | -19.54 | 158.86 | 45.33 | 238.70 | 0.7867 | -591.1 | -419.1 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -20.02 | 158.57 | 45.05 | 238.00 | 0.7863 | -184.0 | -274.0 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -21.06 | 156.05 | 42.53 | 235.41 | 0.7686 | -540.0 | -487.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
