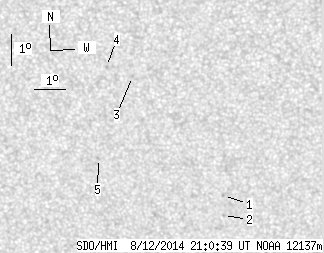

SDO HMI 2014-08-12 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.85 | 0.00 | 3.16 | -14.61 | 103.22 | -10.30 | 154.05 | 0.4015 | 763.4 | 577.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-12 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.44 | 105.48 | -8.04 | 160.98 | 0.4132 | 862.0 | 738.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.10 | 105.45 | -8.07 | 161.45 | 0.4233 | 869.0 | 638.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -12.62 | 102.76 | -10.76 | 150.78 | 0.3750 | 787.0 | 545.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -12.31 | 101.95 | -11.57 | 148.55 | 0.3774 | 637.0 | 463.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -15.30 | 101.53 | -11.99 | 151.52 | 0.4220 | 662.0 | 555.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
