SDO HMI 2014-08-12 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.17 | 407.99 | 35.94 | 217.85 | 14.87 | 133.46 | 20.49 | 294.17 | 0.3723 | -749.1 | -350.3 | |
|
previous
or next observation for the same group /

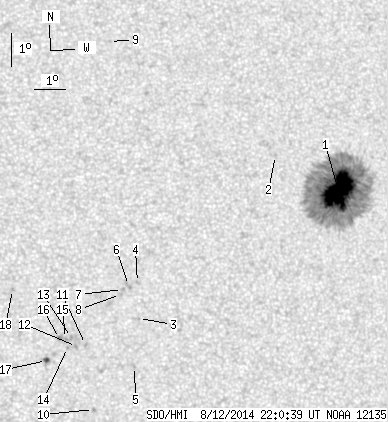

back to the solar disc SDO HMI 2014-08-12 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.64 | 380.61 | 35.16 | 203.84 | 15.09 | 133.98 | 21.01 | 294.29 | 0.3814 | -1464.0 | -427.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.25 | 131.98 | 19.01 | 299.20 | 0.3599 | -910.0 | -750.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.41 | 127.14 | 14.17 | 290.25 | 0.2570 | 772.0 | 520.3 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 12.51 | 127.17 | 14.20 | 294.19 | 0.2638 | 744.0 | 522.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 9.95 | 126.95 | 13.98 | 284.86 | 0.2472 | 715.0 | 619.8 | |
| 0.00 | 4.15 | 0.00 | 2.13 | 12.42 | 126.88 | 13.91 | 294.31 | 0.2587 | 788.0 | 638.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 12.31 | 126.68 | 13.71 | 294.17 | 0.2549 | 852.0 | 677.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 12.16 | 126.61 | 13.64 | 293.72 | 0.2529 | 770.0 | 591.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 19.96 | 126.81 | 13.84 | 316.31 | 0.3269 | 548.0 | 510.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 8.68 | 125.60 | 12.63 | 280.57 | 0.2208 | 924.0 | 731.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 10.66 | 125.42 | 12.45 | 289.44 | 0.2257 | 935.0 | 787.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.61 | 125.14 | 12.17 | 289.59 | 0.2209 | 988.0 | 788.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 10.89 | 124.99 | 12.02 | 291.00 | 0.2200 | 945.0 | 817.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.59 | 124.85 | 11.88 | 289.89 | 0.2162 | 913.0 | 713.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.86 | 124.80 | 11.83 | 291.17 | 0.2169 | 978.0 | 782.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 10.87 | 124.61 | 11.64 | 291.48 | 0.2139 | 1079.0 | 891.4 | |
| 1.53 | 2.98 | 0.78 | 1.51 | 10.21 | 124.17 | 11.20 | 289.13 | 0.2033 | 1078.0 | 841.5 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 12.39 | 123.19 | 10.22 | 300.97 | 0.2030 | 684.0 | 564.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
