SDO HMI 2014-08-12 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.53 | 32.62 | 10.52 | 27.10 | -18.32 | 160.82 | 47.85 | 241.31 | 0.8046 | 385.9 | 253.9 | |
|
previous
or next observation for the same group /

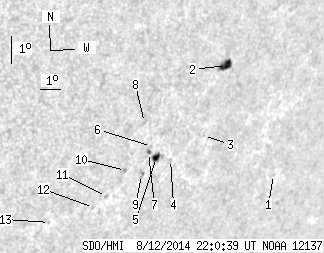

back to the solar disc SDO HMI 2014-08-12 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.26 | -20.38 | 166.79 | 53.82 | 241.61 | 0.8620 | 347.0 | 430.7 | |
| 7.75 | 11.09 | 6.57 | 9.39 | -16.39 | 162.60 | 49.63 | 244.36 | 0.8130 | 624.1 | 416.5 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -18.67 | 162.36 | 49.39 | 241.65 | 0.8194 | 502.0 | 422.3 | |
| 0.00 | 0.99 | 0.00 | 0.83 | -19.34 | 161.01 | 48.04 | 240.27 | 0.8102 | 440.0 | 359.1 | |
| 4.24 | 7.57 | 3.51 | 6.27 | -19.21 | 160.29 | 47.32 | 240.07 | 0.8032 | 670.6 | 425.8 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -18.81 | 159.90 | 46.93 | 240.34 | 0.7980 | 703.0 | 599.1 | |
| 0.54 | 1.53 | 0.44 | 1.25 | -19.00 | 159.83 | 46.86 | 240.08 | 0.7982 | 783.7 | 721.9 | |
| 0.00 | 1.89 | 0.00 | 1.52 | -17.96 | 159.27 | 46.30 | 241.01 | 0.7885 | 334.0 | 354.3 | |
| 0.00 | 2.98 | 0.00 | 2.45 | -19.73 | 159.77 | 46.80 | 239.22 | 0.8009 | 625.0 | 472.8 | |
| 0.00 | 1.44 | 0.00 | 1.17 | -19.53 | 158.94 | 45.97 | 239.04 | 0.7925 | -640.0 | -510.0 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -20.35 | 158.37 | 45.40 | 237.81 | 0.7911 | -582.0 | -481.3 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -20.68 | 157.89 | 44.92 | 237.18 | 0.7884 | -492.0 | -354.3 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -21.03 | 156.02 | 43.06 | 235.74 | 0.7733 | -516.0 | -457.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
