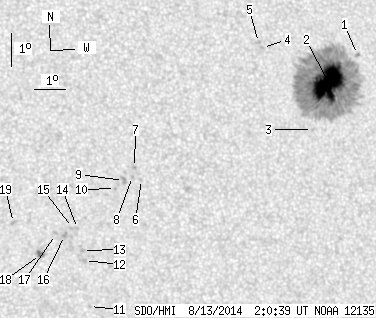

SDO HMI 2014-08-13 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.66 | 417.01 | 36.26 | 226.03 | 14.94 | 133.52 | 22.75 | 292.43 | 0.4059 | -740.2 | -329.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.94 | 15.98 | 135.13 | 24.37 | 293.66 | 0.4348 | -609.0 | -469.4 | |
| 66.66 | 385.38 | 36.26 | 209.59 | 15.17 | 134.03 | 23.26 | 292.64 | 0.4148 | -1339.3 | -403.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 13.76 | 133.33 | 22.56 | 289.78 | 0.3977 | -628.0 | -561.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.34 | 131.92 | 21.15 | 297.15 | 0.3908 | -830.0 | -723.8 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 16.50 | 131.80 | 21.03 | 297.64 | 0.3901 | -880.0 | -689.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 12.45 | 127.55 | 16.78 | 290.90 | 0.3031 | 621.0 | 408.4 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 12.82 | 127.35 | 16.58 | 292.28 | 0.3020 | 865.0 | 699.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.55 | 127.26 | 16.50 | 291.51 | 0.2993 | 768.0 | 612.5 | |
| 0.00 | 3.70 | 0.00 | 1.92 | 12.44 | 126.96 | 16.20 | 291.47 | 0.2940 | 696.0 | 668.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 12.20 | 126.69 | 15.92 | 290.99 | 0.2885 | 885.0 | 764.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.64 | 125.67 | 14.91 | 279.02 | 0.2586 | 765.0 | 617.5 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 10.04 | 125.57 | 14.81 | 284.43 | 0.2610 | 845.0 | 632.3 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 10.35 | 125.53 | 14.76 | 285.61 | 0.2614 | 815.0 | 645.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 11.02 | 125.40 | 14.63 | 288.24 | 0.2623 | 767.0 | 615.4 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 11.06 | 125.24 | 14.48 | 288.53 | 0.2599 | 649.0 | 522.0 | |
| 0.00 | 2.89 | 0.00 | 1.48 | 10.82 | 124.97 | 14.21 | 287.93 | 0.2545 | 1064.0 | 838.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 10.86 | 124.69 | 13.92 | 288.38 | 0.2502 | 592.0 | 711.8 | |
| 0.00 | 4.69 | 0.00 | 2.39 | 10.26 | 124.18 | 13.42 | 286.57 | 0.2393 | 1135.0 | 955.3 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 11.26 | 123.37 | 12.61 | 291.64 | 0.2313 | 882.0 | 710.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
