SDO HMI 2014-08-13 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.71 | 31.72 | 12.07 | 27.59 | -18.40 | 160.68 | 49.91 | 242.15 | 0.8233 | 328.5 | 229.6 | |
|
previous
or next observation for the same group /

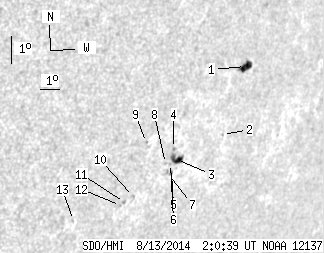

back to the solar disc SDO HMI 2014-08-13 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.76 | 10.28 | 6.91 | 9.16 | -16.32 | 162.65 | 51.88 | 245.33 | 0.8330 | 577.3 | 437.0 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -18.53 | 162.34 | 51.57 | 242.73 | 0.8378 | 421.0 | 400.8 | |
| 5.95 | 8.75 | 5.16 | 7.58 | -19.17 | 160.27 | 49.50 | 241.13 | 0.8224 | 657.4 | 531.7 | |
| 0.00 | 1.08 | 0.00 | 0.93 | -18.77 | 159.96 | 49.20 | 241.43 | 0.8182 | 619.0 | 612.6 | |
| 0.00 | 1.44 | 0.00 | 1.25 | -19.59 | 160.20 | 49.43 | 240.62 | 0.8234 | 463.0 | 461.3 | |
| 0.00 | 1.71 | 0.00 | 1.48 | -19.28 | 160.02 | 49.25 | 240.89 | 0.8206 | 533.0 | 574.6 | |
| 0.00 | 1.80 | 0.00 | 1.56 | -19.57 | 159.99 | 49.22 | 240.54 | 0.8216 | 603.0 | 530.5 | |
| 0.00 | 0.90 | 0.00 | 0.77 | -19.25 | 159.76 | 48.99 | 240.80 | 0.8183 | 339.0 | 333.7 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -18.44 | 158.52 | 47.76 | 241.15 | 0.8040 | -504.0 | -421.4 | |
| 0.00 | 1.26 | 0.00 | 1.07 | -20.25 | 158.60 | 47.83 | 239.13 | 0.8123 | -507.0 | -432.6 | |
| 0.00 | 1.62 | 0.00 | 1.36 | -20.42 | 158.23 | 47.47 | 238.77 | 0.8099 | -548.0 | -478.2 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -20.51 | 158.08 | 47.31 | 238.59 | 0.8089 | -645.0 | -515.4 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -20.83 | 155.99 | 45.22 | 237.16 | 0.7919 | -578.0 | -433.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
