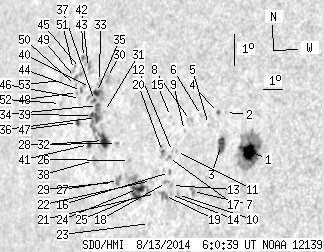

SDO HMI 2014-08-13 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.46 | 266.08 | 49.97 | 223.11 | 13.72 | 54.44 | -54.14 | 77.75 | 0.8064 | -4.1 | 67.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.99 | 68.31 | 10.51 | 51.39 | 13.82 | 59.51 | -49.07 | 77.34 | 0.7542 | -1089.5 | -369.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 14.91 | 58.01 | -50.57 | 76.04 | 0.7713 | 322.0 | 266.0 | |
| 6.77 | 10.02 | 5.23 | 7.74 | 13.92 | 58.11 | -50.46 | 77.31 | 0.7695 | -707.1 | -405.6 | |
| 0.63 | 1.53 | 0.49 | 1.20 | 14.88 | 57.67 | -50.91 | 76.11 | 0.7750 | 457.9 | 310.0 | |
| 0.00 | 0.63 | 0.00 | 0.50 | 14.47 | 57.29 | -51.28 | 76.66 | 0.7786 | -540.0 | -478.4 | |
| 0.00 | 2.26 | 0.00 | 1.79 | 14.71 | 56.86 | -51.71 | 76.38 | 0.7834 | -575.0 | -536.9 | |
| 0.00 | 4.51 | 0.00 | 3.55 | 12.38 | 57.11 | -51.46 | 79.35 | 0.7796 | -954.0 | -706.4 | |
| 0.00 | 2.80 | 0.00 | 2.24 | 14.51 | 56.36 | -52.21 | 76.67 | 0.7885 | -552.0 | -510.3 | |
| 0.00 | 1.08 | 0.00 | 0.87 | 14.19 | 56.16 | -52.41 | 77.09 | 0.7904 | -611.0 | -514.3 | |
| 0.00 | 1.80 | 0.00 | 1.44 | 12.23 | 56.40 | -52.18 | 79.57 | 0.7872 | -593.0 | -555.5 | |
| 0.00 | 0.72 | 0.00 | 0.58 | 13.52 | 55.96 | -52.61 | 77.95 | 0.7921 | -612.0 | -569.6 | |
| 0.00 | 0.72 | 0.00 | 0.59 | 13.50 | 55.76 | -52.81 | 77.98 | 0.7942 | -411.0 | -387.5 | |
| 0.00 | 1.35 | 0.00 | 1.09 | 12.47 | 56.02 | -52.55 | 79.27 | 0.7912 | -597.0 | -521.5 | |
| 0.00 | 0.90 | 0.00 | 0.73 | 12.20 | 56.05 | -52.53 | 79.62 | 0.7908 | -701.0 | -536.9 | |
| 0.00 | 0.81 | 0.00 | 0.67 | 14.55 | 55.31 | -53.26 | 76.69 | 0.7993 | -365.0 | -263.7 | |
| 0.00 | 2.08 | 0.00 | 1.68 | 12.85 | 55.80 | -52.77 | 78.80 | 0.7935 | -565.0 | -452.0 | |
| 0.00 | 2.08 | 0.00 | 1.69 | 13.30 | 55.62 | -52.96 | 78.24 | 0.7956 | -581.0 | -491.2 | |
| 0.00 | 2.26 | 0.00 | 1.83 | 12.54 | 55.74 | -52.83 | 79.20 | 0.7941 | -392.0 | -342.5 | |
| 0.00 | 6.68 | 0.00 | 5.42 | 12.14 | 55.75 | -52.82 | 79.70 | 0.7939 | -720.0 | -504.0 | |
| 0.63 | 4.15 | 0.52 | 3.41 | 13.45 | 55.25 | -53.32 | 78.06 | 0.7994 | -452.9 | -289.9 | |
| 0.00 | 1.35 | 0.00 | 1.11 | 12.16 | 55.28 | -53.29 | 79.69 | 0.7988 | -266.0 | -398.9 | |
| 0.00 | 0.81 | 0.00 | 0.67 | 12.53 | 54.96 | -53.61 | 79.23 | 0.8021 | 150.0 | 139.6 | |
| 0.00 | 1.26 | 0.00 | 1.04 | 11.23 | 55.22 | -53.35 | 80.85 | 0.7993 | -308.0 | -239.3 | |
| 5.87 | 32.85 | 4.91 | 27.54 | 12.23 | 54.36 | -54.21 | 79.62 | 0.8082 | -159.9 | 129.8 | |
| 3.88 | -24.00 | 3.25 | -24.00 | 11.98 | 54.33 | -54.25 | 79.93 | 0.8085 | -242.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.46 | 13.03 | 53.62 | -54.95 | 78.65 | 0.8157 | 270.0 | 263.0 | |
| 0.00 | 5.14 | 0.00 | 4.42 | 12.37 | 53.23 | -55.34 | 79.46 | 0.8194 | 402.0 | 466.9 | |
| 0.00 | 1.71 | 0.00 | 1.49 | 13.48 | 52.75 | -55.82 | 78.12 | 0.8243 | 735.0 | 618.8 | |
| 0.00 | 1.08 | 0.00 | 0.94 | 12.28 | 52.93 | -55.65 | 79.57 | 0.8224 | 535.0 | 500.5 | |
| 0.00 | 4.87 | 0.00 | 4.39 | 15.41 | 51.48 | -57.09 | 75.83 | 0.8368 | 512.0 | 504.7 | |
| 0.00 | 0.81 | 0.00 | 0.73 | 14.38 | 51.73 | -56.84 | 77.07 | 0.8342 | 454.0 | 423.2 | |
| 8.93 | 58.03 | 7.91 | 52.17 | 13.50 | 52.01 | -56.57 | 78.11 | 0.8314 | 798.6 | 585.1 | |
| 0.00 | 2.44 | 0.00 | 2.21 | 15.25 | 51.08 | -57.49 | 76.05 | 0.8404 | 790.0 | 615.8 | |
| 1.26 | -32.00 | 1.14 | -32.00 | 14.52 | 51.27 | -57.30 | 76.91 | 0.8385 | 838.6 | 999999 | |
| 3.61 | -32.00 | 3.28 | -32.00 | 14.90 | 51.05 | -57.52 | 76.46 | 0.8406 | 795.5 | 999999 | |
| 3.70 | -32.00 | 3.34 | -32.00 | 14.15 | 51.36 | -57.22 | 77.34 | 0.8376 | 802.0 | 999999 | |
| 1.08 | -32.00 | 0.99 | -32.00 | 14.65 | 51.04 | -57.53 | 76.76 | 0.8407 | 752.3 | 999999 | |
| 0.00 | 3.52 | 0.00 | 3.14 | 12.85 | 51.67 | -56.91 | 78.90 | 0.8345 | 497.0 | 462.1 | |
| 1.62 | -32.00 | 1.48 | -32.00 | 14.19 | 51.11 | -57.47 | 77.31 | 0.8399 | 590.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.75 | 15.02 | 50.65 | -57.93 | 76.33 | 0.8443 | 484.0 | 394.3 | |
| 2.17 | 3.61 | 1.96 | 3.26 | 13.30 | 51.21 | -57.36 | 78.37 | 0.8388 | 554.5 | 418.2 | |
| 0.63 | 7.22 | 0.59 | 6.70 | 15.61 | 50.27 | -58.31 | 75.65 | 0.8479 | 737.0 | 487.2 | |
| 0.81 | 2.62 | 0.76 | 2.46 | 15.88 | 49.84 | -58.74 | 75.35 | 0.8518 | 395.3 | 312.8 | |
| 0.90 | 3.16 | 0.84 | 2.94 | 14.88 | 50.17 | -58.41 | 76.51 | 0.8486 | 625.1 | 533.0 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 15.54 | 49.81 | -58.76 | 75.76 | 0.8519 | 373.0 | 351.7 | |
| 0.00 | 0.99 | 0.00 | 0.92 | 14.64 | 50.21 | -58.36 | 76.80 | 0.8482 | 199.0 | 304.2 | |
| 2.08 | 3.16 | 1.92 | 2.92 | 13.90 | 50.33 | -58.24 | 77.67 | 0.8469 | 473.7 | 382.0 | |
| 0.00 | 1.44 | 0.00 | 1.35 | 14.80 | 49.96 | -58.61 | 76.62 | 0.8504 | 470.0 | 410.1 | |
| 0.90 | 4.78 | 0.85 | 4.50 | 15.24 | 49.64 | -58.93 | 76.11 | 0.8534 | 430.3 | 475.7 | |
| 0.00 | 1.62 | 0.00 | 1.53 | 15.00 | 49.75 | -58.82 | 76.39 | 0.8523 | 324.0 | 340.1 | |
| 0.00 | 3.61 | 0.00 | 3.43 | 15.47 | 49.41 | -59.16 | 75.85 | 0.8554 | 161.0 | 120.0 | |
| 0.00 | 1.17 | 0.00 | 1.12 | 14.37 | 49.10 | -59.47 | 77.14 | 0.8579 | 391.0 | 294.8 | |
| 0.00 | 1.08 | 0.00 | 1.05 | 15.06 | 48.79 | -59.78 | 76.34 | 0.8607 | 395.0 | 284.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
