SDO HMI 2014-08-13 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.61 | 390.28 | 35.89 | 216.17 | 14.98 | 133.61 | 25.58 | 290.63 | 0.4475 | -933.7 | -355.2 | |
|
previous
or next observation for the same group /

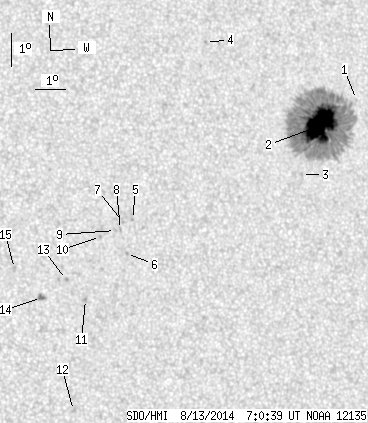

back to the solar disc SDO HMI 2014-08-13 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | 15.91 | 135.37 | 27.35 | 291.60 | 0.4771 | -493.0 | -351.6 | |
| 64.61 | 368.47 | 35.89 | 204.70 | 15.17 | 134.00 | 25.97 | 290.87 | 0.4542 | -1498.0 | -413.6 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 13.71 | 133.15 | 25.13 | 288.14 | 0.4359 | -764.0 | -573.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 17.91 | 130.37 | 22.34 | 299.56 | 0.4176 | -589.0 | -517.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 12.58 | 127.34 | 19.32 | 289.03 | 0.3430 | 668.0 | 539.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 11.55 | 127.07 | 19.04 | 286.28 | 0.3344 | 661.0 | 561.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 12.50 | 127.04 | 19.01 | 289.04 | 0.3379 | 840.0 | 680.4 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 12.29 | 126.92 | 18.90 | 288.53 | 0.3352 | 783.0 | 675.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 12.27 | 126.76 | 18.73 | 288.59 | 0.3325 | 723.0 | 481.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.10 | 126.25 | 18.23 | 288.51 | 0.3239 | 884.0 | 684.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.20 | 125.64 | 17.62 | 283.04 | 0.3071 | 930.0 | 834.4 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 6.84 | 125.09 | 17.07 | 271.99 | 0.2929 | 782.0 | 678.0 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 10.83 | 125.06 | 17.04 | 285.46 | 0.2999 | 932.0 | 805.1 | |
| 0.00 | 4.06 | 0.00 | 2.10 | 10.31 | 124.23 | 16.20 | 284.32 | 0.2846 | 1149.0 | 916.3 | |
| 0.00 | 2.35 | 0.00 | 1.21 | 11.22 | 123.41 | 15.38 | 288.18 | 0.2751 | 675.0 | 496.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
