SDO HMI 2014-08-13 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.36 | 34.28 | 11.57 | 31.84 | -18.56 | 160.74 | 52.72 | 243.14 | 0.8477 | 353.7 | 219.1 | |
|
previous
or next observation for the same group /

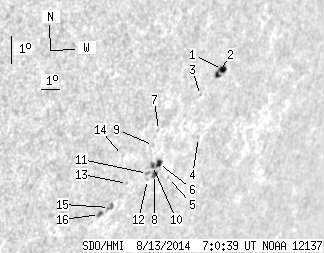

back to the solar disc SDO HMI 2014-08-13 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.52 | 9.75 | 3.36 | 9.29 | -16.24 | 162.77 | 54.74 | 246.49 | 0.8570 | 480.5 | 412.5 | |
| 1.90 | -1.00 | 1.80 | -1.00 | -16.38 | 162.55 | 54.53 | 246.26 | 0.8556 | 621.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -17.00 | 161.88 | 53.86 | 245.32 | 0.8519 | 377.0 | 354.3 | |
| 0.00 | 0.99 | 0.00 | 0.96 | -18.43 | 162.41 | 54.38 | 243.94 | 0.8605 | 455.0 | 370.7 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -19.66 | 161.34 | 53.32 | 242.19 | 0.8559 | 382.0 | 330.7 | |
| 2.80 | 8.30 | 2.60 | 7.69 | -19.12 | 160.55 | 52.53 | 242.47 | 0.8477 | 638.5 | 598.9 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -17.98 | 160.06 | 52.03 | 243.53 | 0.8398 | 510.0 | 442.7 | |
| 1.71 | 3.52 | 1.60 | 3.27 | -19.48 | 160.51 | 52.48 | 242.05 | 0.8486 | 523.6 | 411.5 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -18.47 | 160.00 | 51.98 | 242.96 | 0.8410 | 514.0 | 425.3 | |
| 1.35 | -6.00 | 1.25 | -6.00 | -19.15 | 160.25 | 52.23 | 242.30 | 0.8454 | 810.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.58 | -19.41 | 160.10 | 52.08 | 241.97 | 0.8450 | 615.0 | 594.1 | |
| 0.00 | 0.90 | 0.00 | 0.83 | -19.61 | 160.20 | 52.17 | 241.77 | 0.8465 | 393.0 | 353.5 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -19.65 | 159.17 | 51.14 | 241.30 | 0.8382 | -413.0 | -380.5 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -18.66 | 158.49 | 50.46 | 242.12 | 0.8288 | -253.0 | -378.3 | |
| 0.00 | 4.06 | 0.00 | 3.65 | -20.40 | 158.58 | 50.55 | 240.22 | 0.8360 | -654.0 | -407.2 | |
| 1.08 | 2.80 | 0.96 | 2.49 | -20.60 | 158.15 | 50.13 | 239.81 | 0.8333 | -563.8 | -385.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
