SDO HMI 2014-08-13 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.95 | 0.00 | 3.57 | -24.28 | 121.50 | 14.02 | 202.55 | 0.5643 | -553.0 | -418.3 | |
|
previous
or next observation for the same group /

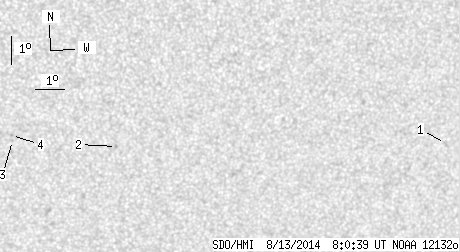

back to the solar disc SDO HMI 2014-08-13 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.80 | 0.00 | 1.74 | -24.53 | 128.44 | 20.96 | 212.58 | 0.6066 | -195.0 | -289.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.25 | 117.00 | 9.52 | 196.46 | 0.5345 | -785.0 | -575.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -23.98 | 113.49 | 6.01 | 190.68 | 0.5183 | -580.0 | -495.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.80 | 113.45 | 5.97 | 190.68 | 0.5156 | -652.0 | -541.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
