SDO HMI 2014-08-13 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.72 | 269.22 | 58.59 | 219.33 | 13.71 | 54.61 | -52.87 | 77.69 | 0.7935 | -43.8 | 68.1 | |
|
previous
or next observation for the same group /

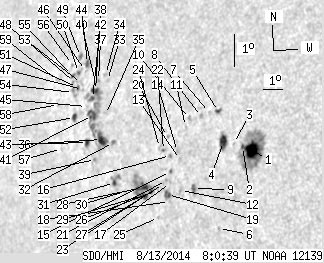

back to the solar disc SDO HMI 2014-08-13 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.99 | 73.01 | 10.30 | 53.72 | 13.82 | 59.50 | -47.98 | 77.26 | 0.7419 | -1066.6 | -372.9 | |
| 0.81 | -1.00 | 0.60 | -1.00 | 13.90 | 59.05 | -48.43 | 77.18 | 0.7470 | -378.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 13.96 | 58.61 | -48.87 | 77.14 | 0.7521 | -469.0 | -389.9 | |
| 7.31 | 10.47 | 5.53 | 7.91 | 13.98 | 58.12 | -49.36 | 77.15 | 0.7575 | -644.7 | -321.1 | |
| 1.35 | 3.07 | 1.03 | 2.35 | 14.87 | 57.61 | -49.87 | 76.03 | 0.7638 | 628.2 | 444.5 | |
| 0.00 | 1.35 | 0.00 | 1.01 | 11.33 | 58.57 | -48.91 | 80.64 | 0.7512 | -524.0 | -411.9 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 14.80 | 57.19 | -50.29 | 76.15 | 0.7683 | -494.0 | -463.9 | |
| 0.00 | 2.17 | 0.00 | 1.68 | 14.65 | 56.84 | -50.64 | 76.38 | 0.7719 | -604.0 | -531.2 | |
| 1.62 | 4.06 | 1.25 | 3.13 | 12.44 | 57.09 | -50.39 | 79.23 | 0.7680 | -828.6 | -643.1 | |
| 0.00 | 1.71 | 0.00 | 1.35 | 14.54 | 56.27 | -51.20 | 76.56 | 0.7779 | -592.0 | -525.8 | |
| 0.00 | 0.72 | 0.00 | 0.57 | 14.28 | 56.16 | -51.32 | 76.91 | 0.7790 | -591.0 | -495.4 | |
| 0.00 | 2.62 | 0.00 | 2.04 | 12.33 | 56.48 | -51.00 | 79.41 | 0.7746 | -580.0 | -468.3 | |
| 0.00 | 1.71 | 0.00 | 1.35 | 13.26 | 56.21 | -51.26 | 78.21 | 0.7778 | -317.0 | -355.3 | |
| 0.00 | 1.71 | 0.00 | 1.35 | 13.49 | 56.00 | -51.48 | 77.93 | 0.7803 | -722.0 | -560.8 | |
| 0.54 | 1.71 | 0.43 | 1.36 | 12.86 | 55.83 | -51.65 | 78.75 | 0.7818 | -528.8 | -482.4 | |
| 0.00 | 1.90 | 0.00 | 1.50 | 13.34 | 55.69 | -51.79 | 78.14 | 0.7835 | -609.0 | -475.0 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 12.53 | 55.92 | -51.55 | 79.17 | 0.7807 | -526.0 | -496.6 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 11.95 | 56.03 | -51.45 | 79.91 | 0.7794 | -588.0 | -533.3 | |
| 2.80 | 4.69 | 2.21 | 3.71 | 12.15 | 55.87 | -51.60 | 79.65 | 0.7811 | -633.2 | -450.6 | |
| 0.00 | 1.26 | 0.00 | 1.01 | 13.90 | 55.36 | -52.12 | 77.44 | 0.7872 | -298.0 | -244.9 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 12.57 | 55.71 | -51.77 | 79.12 | 0.7830 | -386.0 | -288.1 | |
| 0.45 | 1.26 | 0.36 | 1.01 | 13.46 | 55.29 | -52.18 | 78.00 | 0.7877 | -422.6 | -332.8 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 12.46 | 55.59 | -51.89 | 79.26 | 0.7842 | -248.0 | -221.3 | |
| 0.00 | 1.44 | 0.00 | 1.16 | 13.53 | 55.06 | -52.41 | 77.92 | 0.7901 | -108.0 | -49.2 | |
| 0.00 | 0.90 | 0.00 | 0.72 | 11.42 | 55.61 | -51.86 | 80.60 | 0.7837 | -424.0 | -407.2 | |
| 0.00 | 2.89 | 0.00 | 2.31 | 12.22 | 55.30 | -52.18 | 79.58 | 0.7872 | -483.0 | -373.7 | |
| 1.08 | 32.22 | 0.87 | 26.20 | 12.17 | 55.06 | -52.42 | 79.65 | 0.7897 | -636.2 | 47.1 | |
| 6.68 | -27.00 | 5.43 | -27.00 | 12.25 | 54.57 | -52.91 | 79.56 | 0.7948 | -327.4 | 999999 | |
| 5.05 | -27.00 | 4.10 | -27.00 | 12.01 | 54.64 | -52.84 | 79.86 | 0.7941 | -300.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.90 | 12.05 | 53.69 | -53.79 | 79.83 | 0.8039 | 337.0 | 292.8 | |
| 1.35 | 7.49 | 1.14 | 6.29 | 12.27 | 53.09 | -54.39 | 79.56 | 0.8100 | 654.1 | 451.5 | |
| 0.63 | 1.90 | 0.54 | 1.61 | 13.47 | 52.65 | -54.83 | 78.10 | 0.8146 | 694.4 | 599.9 | |
| 0.00 | 1.44 | 0.00 | 1.26 | 15.31 | 51.63 | -55.84 | 75.90 | 0.8251 | 405.0 | 337.7 | |
| 0.00 | 1.62 | 0.00 | 1.42 | 15.48 | 51.45 | -56.03 | 75.70 | 0.8269 | 478.0 | 465.2 | |
| 0.00 | 0.99 | 0.00 | 0.86 | 14.27 | 51.92 | -55.56 | 77.14 | 0.8219 | 240.0 | 303.5 | |
| 7.40 | 59.20 | 6.39 | 51.84 | 13.50 | 51.97 | -55.50 | 78.08 | 0.8212 | 805.3 | 591.4 | |
| 0.00 | 0.63 | 0.00 | 0.56 | 15.26 | 51.14 | -56.34 | 75.98 | 0.8298 | 772.0 | 654.4 | |
| 3.43 | -36.00 | 3.03 | -36.00 | 14.94 | 51.10 | -56.38 | 76.36 | 0.8300 | 810.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.33 | 12.87 | 51.86 | -55.62 | 78.85 | 0.8222 | 527.0 | 531.9 | |
| 0.00 | 0.90 | 0.00 | 0.80 | 15.21 | 50.99 | -56.49 | 76.04 | 0.8312 | 607.0 | 564.9 | |
| 5.41 | -36.00 | 4.77 | -36.00 | 14.18 | 51.22 | -56.25 | 77.28 | 0.8286 | 716.0 | 999999 | |
| 1.90 | -36.00 | 1.68 | -36.00 | 14.69 | 51.03 | -56.45 | 76.67 | 0.8306 | 762.9 | 999999 | |
| 2.53 | 4.06 | 2.22 | 3.57 | 13.34 | 51.25 | -56.23 | 78.29 | 0.8282 | 510.6 | 435.9 | |
| 1.44 | 4.15 | 1.30 | 3.74 | 15.71 | 50.31 | -57.17 | 75.47 | 0.8377 | 720.6 | 530.0 | |
| 0.00 | 0.99 | 0.00 | 0.88 | 14.42 | 50.79 | -56.69 | 77.01 | 0.8328 | 305.0 | 308.4 | |
| 0.00 | 0.99 | 0.00 | 0.89 | 15.49 | 50.29 | -57.19 | 75.74 | 0.8378 | 693.0 | 585.0 | |
| 0.00 | 0.90 | 0.00 | 0.81 | 14.91 | 50.36 | -57.12 | 76.44 | 0.8369 | 600.0 | 549.3 | |
| 0.00 | 1.44 | 0.00 | 1.30 | 15.08 | 50.23 | -57.25 | 76.23 | 0.8382 | 653.0 | 548.6 | |
| 0.99 | 3.16 | 0.91 | 2.88 | 15.89 | 49.82 | -57.66 | 75.29 | 0.8422 | 380.8 | 264.5 | |
| 0.90 | 4.96 | 0.82 | 4.53 | 15.40 | 49.92 | -57.56 | 75.87 | 0.8411 | 605.4 | 407.4 | |
| 0.72 | 1.99 | 0.65 | 1.80 | 14.94 | 50.05 | -57.42 | 76.41 | 0.8397 | 578.4 | 526.0 | |
| 2.35 | 4.15 | 2.12 | 3.74 | 14.02 | 50.25 | -57.23 | 77.50 | 0.8377 | 500.7 | 334.8 | |
| 0.00 | 2.35 | 0.00 | 2.14 | 15.07 | 49.82 | -57.66 | 76.26 | 0.8419 | 406.0 | 373.9 | |
| 0.00 | 3.34 | 0.00 | 3.04 | 14.77 | 49.89 | -57.59 | 76.62 | 0.8412 | 434.0 | 407.4 | |
| 0.99 | -50.00 | 0.91 | -50.00 | 15.27 | 49.62 | -57.86 | 76.03 | 0.8438 | 411.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.67 | 15.60 | 49.47 | -58.01 | 75.64 | 0.8453 | 150.0 | 87.9 | |
| 0.00 | 0.81 | 0.00 | 0.74 | 13.03 | 49.86 | -57.61 | 78.70 | 0.8411 | 296.0 | 244.3 | |
| 0.00 | 1.08 | 0.00 | 1.00 | 14.33 | 49.18 | -58.30 | 77.16 | 0.8475 | 345.0 | 311.2 | |
| 0.00 | 1.44 | 0.00 | 1.35 | 15.04 | 48.81 | -58.66 | 76.33 | 0.8510 | 439.0 | 318.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
