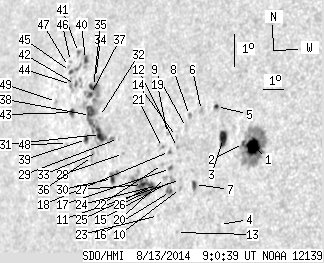

SDO HMI 2014-08-13 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.14 | 284.67 | 64.77 | 229.23 | 13.71 | 54.57 | -52.36 | 77.67 | 0.7882 | -40.1 | 55.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.53 | 76.79 | 10.58 | 55.92 | 13.84 | 59.56 | -47.37 | 77.18 | 0.7350 | -1066.2 | -348.1 | |
| 2.44 | -1.00 | 1.79 | -1.00 | 13.89 | 59.08 | -47.85 | 77.15 | 0.7405 | -449.0 | 999999 | |
| 8.39 | 11.37 | 6.28 | 8.51 | 13.96 | 58.11 | -48.82 | 77.13 | 0.7515 | -577.9 | -244.7 | |
| 0.00 | 0.36 | 0.00 | 0.27 | 11.35 | 58.59 | -48.34 | 80.60 | 0.7448 | -481.0 | -409.2 | |
| 1.26 | 2.17 | 0.96 | 1.64 | 14.90 | 57.50 | -49.43 | 75.94 | 0.7590 | 429.8 | 367.0 | |
| 0.00 | 2.44 | 0.00 | 1.87 | 14.72 | 56.82 | -50.11 | 76.24 | 0.7663 | -742.0 | -602.9 | |
| 1.99 | 4.33 | 1.51 | 3.30 | 12.46 | 57.13 | -49.80 | 79.18 | 0.7616 | -766.2 | -571.8 | |
| 0.00 | 2.17 | 0.00 | 1.68 | 14.52 | 56.29 | -50.64 | 76.54 | 0.7719 | -656.0 | -566.4 | |
| 0.00 | 2.98 | 0.00 | 2.31 | 14.15 | 56.26 | -50.67 | 77.03 | 0.7720 | -430.0 | -469.2 | |
| 0.00 | 1.53 | 0.00 | 1.18 | 12.28 | 56.49 | -50.44 | 79.44 | 0.7685 | -633.0 | -574.5 | |
| 0.00 | 1.35 | 0.00 | 1.05 | 12.55 | 56.42 | -50.51 | 79.09 | 0.7694 | -605.0 | -503.3 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 13.51 | 56.00 | -50.93 | 77.88 | 0.7744 | -718.0 | -662.7 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 10.94 | 56.63 | -50.30 | 81.19 | 0.7667 | -505.0 | -422.2 | |
| 0.00 | 1.44 | 0.00 | 1.13 | 13.83 | 55.85 | -51.08 | 77.46 | 0.7761 | -503.0 | -420.7 | |
| 0.00 | 3.61 | 0.00 | 2.81 | 12.49 | 56.04 | -50.89 | 79.19 | 0.7735 | -745.0 | -550.2 | |
| 0.99 | 4.96 | 0.77 | 3.87 | 12.15 | 56.03 | -50.90 | 79.63 | 0.7735 | -730.9 | -562.9 | |
| 0.81 | 1.99 | 0.63 | 1.55 | 12.84 | 55.84 | -51.09 | 78.74 | 0.7758 | -520.2 | -373.5 | |
| 0.00 | 1.90 | 0.00 | 1.49 | 13.35 | 55.65 | -51.28 | 78.10 | 0.7781 | -530.0 | -479.1 | |
| 0.00 | 1.35 | 0.00 | 1.07 | 13.89 | 55.38 | -51.55 | 77.42 | 0.7811 | -362.0 | -268.9 | |
| 0.00 | 2.44 | 0.00 | 1.91 | 12.55 | 55.67 | -51.25 | 79.13 | 0.7775 | -333.0 | -247.2 | |
| 0.00 | 1.53 | 0.00 | 1.21 | 13.44 | 55.27 | -51.66 | 78.00 | 0.7822 | -580.0 | -407.8 | |
| 0.00 | 1.35 | 0.00 | 1.07 | 12.93 | 55.42 | -51.51 | 78.65 | 0.7804 | 249.0 | 222.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 11.38 | 55.64 | -51.29 | 80.64 | 0.7776 | -431.0 | -396.7 | |
| 0.00 | 0.99 | 0.00 | 0.78 | 12.28 | 55.35 | -51.58 | 79.49 | 0.7809 | -507.0 | -393.5 | |
| 3.52 | 33.66 | 2.80 | 27.00 | 12.22 | 55.06 | -51.87 | 79.57 | 0.7839 | -636.7 | 38.1 | |
| 4.60 | -25.00 | 3.68 | -25.00 | 12.01 | 54.81 | -52.11 | 79.84 | 0.7865 | -397.5 | 999999 | |
| 5.05 | -25.00 | 4.06 | -25.00 | 12.24 | 54.60 | -52.33 | 79.56 | 0.7888 | -216.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.89 | 13.09 | 53.36 | -53.57 | 78.53 | 0.8019 | 649.0 | 572.3 | |
| 0.00 | 0.63 | 0.00 | 0.53 | 13.52 | 52.95 | -53.97 | 78.01 | 0.8061 | 552.0 | 535.7 | |
| 3.25 | 7.85 | 2.70 | 6.52 | 12.29 | 53.02 | -53.91 | 79.54 | 0.8051 | 597.5 | 460.3 | |
| 7.67 | 67.68 | 6.54 | 58.44 | 13.55 | 51.97 | -54.96 | 78.00 | 0.8159 | 790.5 | 545.1 | |
| 0.00 | 0.36 | 0.00 | 0.31 | 14.09 | 51.73 | -55.20 | 77.35 | 0.8185 | 518.0 | 596.8 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 13.00 | 51.99 | -54.94 | 78.68 | 0.8155 | 510.0 | 430.0 | |
| 0.00 | 2.08 | 0.00 | 1.81 | 15.24 | 51.06 | -55.87 | 75.98 | 0.8253 | 690.0 | 594.3 | |
| 3.79 | -31.00 | 3.31 | -31.00 | 14.96 | 51.06 | -55.87 | 76.32 | 0.8252 | 806.4 | 999999 | |
| 0.00 | 3.88 | 0.00 | 3.32 | 12.85 | 51.77 | -55.16 | 78.87 | 0.8177 | 607.0 | 454.6 | |
| 2.17 | -31.00 | 1.89 | -31.00 | 14.70 | 50.99 | -55.94 | 76.63 | 0.8257 | 756.7 | 999999 | |
| 10.29 | -31.00 | 8.93 | -31.00 | 14.07 | 51.23 | -55.70 | 77.39 | 0.8232 | 643.5 | 999999 | |
| 2.17 | 4.33 | 1.88 | 3.76 | 13.33 | 51.27 | -55.66 | 78.29 | 0.8227 | 533.4 | 404.6 | |
| 2.08 | 5.50 | 1.85 | 4.89 | 15.73 | 50.29 | -56.64 | 75.43 | 0.8328 | 624.9 | 515.7 | |
| 0.63 | 2.80 | 0.57 | 2.52 | 15.90 | 49.80 | -57.12 | 75.24 | 0.8374 | 372.0 | 334.5 | |
| 0.72 | 5.05 | 0.65 | 4.50 | 14.93 | 50.04 | -56.88 | 76.40 | 0.8348 | 603.4 | 538.9 | |
| 2.53 | 4.06 | 2.25 | 3.62 | 14.07 | 50.21 | -56.72 | 77.43 | 0.8330 | 489.9 | 347.3 | |
| 0.00 | 5.59 | 0.00 | 5.04 | 14.91 | 49.82 | -57.11 | 76.44 | 0.8368 | 490.0 | 374.7 | |
| 1.26 | 5.96 | 1.14 | 5.36 | 15.29 | 49.60 | -57.33 | 75.99 | 0.8390 | 409.6 | 479.7 | |
| 0.00 | 1.17 | 0.00 | 1.07 | 15.59 | 49.47 | -57.46 | 75.63 | 0.8403 | 233.0 | 154.5 | |
| 0.00 | 0.90 | 0.00 | 0.82 | 15.43 | 49.42 | -57.51 | 75.83 | 0.8407 | 196.0 | 145.7 | |
| 0.00 | 0.72 | 0.00 | 0.64 | 13.12 | 50.27 | -56.65 | 78.58 | 0.8321 | 443.0 | 393.0 | |
| 0.00 | 0.99 | 0.00 | 0.91 | 14.32 | 49.18 | -57.75 | 77.16 | 0.8425 | 420.0 | 304.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
