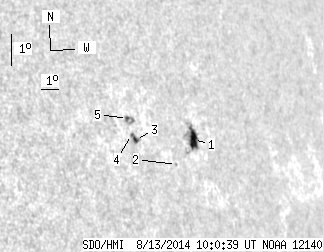

SDO HMI 2014-08-13 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.71 | 37.45 | 13.96 | 35.10 | 13.70 | 165.10 | 58.72 | 282.10 | 0.8509 | -299.3 | -134.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.46 | 24.54 | 11.08 | 23.66 | 13.50 | 166.18 | 59.80 | 281.84 | 0.8607 | -597.4 | -501.0 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 12.85 | 164.88 | 58.50 | 281.09 | 0.8491 | -430.0 | -366.1 | |
| 2.08 | 5.87 | 1.84 | 5.19 | 13.82 | 162.84 | 56.46 | 282.28 | 0.8305 | 553.3 | 373.2 | |
| 0.45 | -3.00 | 0.40 | -3.00 | 13.99 | 162.68 | 56.30 | 282.49 | 0.8290 | 585.0 | 999999 | |
| 0.72 | 6.23 | 0.64 | 5.49 | 14.49 | 162.64 | 56.26 | 283.10 | 0.8288 | 681.0 | 541.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
