SDO HMI 2014-08-13 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 8.83 | 1.21 | 4.38 | 7.26 | 106.30 | 0.47 | 190.45 | 0.0246 | 334.5 | 151.4 | |
|
previous
or next observation for the same group /

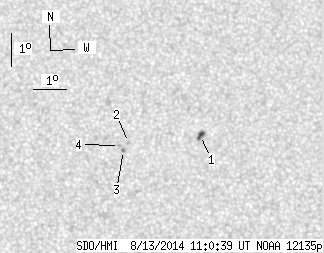

back to the solar disc SDO HMI 2014-08-13 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 4.87 | 1.21 | 2.41 | 7.41 | 107.35 | 1.52 | 300.05 | 0.0305 | -1114.7 | -823.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.21 | 105.15 | -0.68 | 45.70 | 0.0166 | 880.0 | 722.2 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 6.96 | 104.99 | -0.84 | 63.20 | 0.0163 | 1009.0 | 846.1 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.12 | 104.87 | -0.96 | 59.02 | 0.0195 | 868.0 | 654.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
