SDO HMI 2014-08-13 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.35 | 39.95 | 13.30 | 39.16 | -18.68 | 160.73 | 54.89 | 243.85 | 0.8654 | 372.2 | 237.6 | |
|
previous
or next observation for the same group /

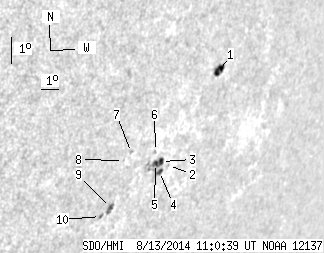

back to the solar disc SDO HMI 2014-08-13 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.50 | 9.29 | 6.58 | 9.41 | -16.29 | 162.74 | 56.91 | 247.18 | 0.8744 | 522.2 | 245.2 | |
| 0.00 | 0.99 | 0.00 | 0.99 | -19.26 | 161.22 | 55.39 | 243.41 | 0.8708 | 324.0 | 236.7 | |
| 2.26 | 19.94 | 2.22 | 19.55 | -19.08 | 160.73 | 54.90 | 243.43 | 0.8665 | 665.0 | 485.5 | |
| 1.89 | -3.00 | 1.88 | -3.00 | -19.42 | 160.79 | 54.96 | 243.08 | 0.8680 | 454.2 | 999999 | |
| 1.71 | -3.00 | 1.68 | -3.00 | -19.12 | 160.42 | 54.58 | 243.27 | 0.8642 | 762.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.22 | -18.70 | 160.21 | 54.38 | 243.65 | 0.8613 | 653.0 | 553.0 | |
| 0.00 | 1.35 | 0.00 | 1.27 | -18.60 | 158.86 | 53.03 | 243.24 | 0.8501 | -213.0 | -117.5 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -18.83 | 158.54 | 52.71 | 242.85 | 0.8482 | -262.0 | -249.7 | |
| 0.99 | 5.05 | 0.94 | 4.78 | -20.41 | 158.58 | 52.75 | 241.15 | 0.8538 | -537.5 | -375.5 | |
| 0.00 | 1.80 | 0.00 | 1.69 | -20.67 | 158.17 | 52.34 | 240.69 | 0.8515 | -232.0 | -287.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
