SDO HMI 2014-08-13 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.07 | 37.61 | 12.22 | 37.47 | -18.62 | 160.86 | 55.58 | 244.17 | 0.8706 | 420.7 | 307.6 | |
|
previous
or next observation for the same group /

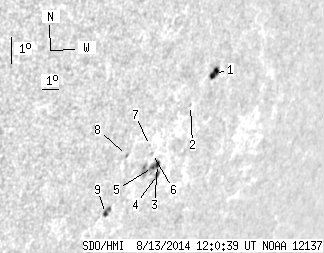

back to the solar disc SDO HMI 2014-08-13 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.13 | 8.39 | 6.31 | 8.64 | -16.28 | 162.71 | 57.43 | 247.36 | 0.8784 | 529.1 | 268.8 | |
| 0.00 | 0.90 | 0.00 | 0.91 | -17.23 | 161.74 | 56.46 | 246.00 | 0.8734 | 377.0 | 309.3 | |
| 2.07 | 20.84 | 2.08 | 20.73 | -19.07 | 160.74 | 55.46 | 243.65 | 0.8708 | 649.9 | 467.8 | |
| 1.53 | -3.00 | 1.55 | -3.00 | -19.42 | 160.92 | 55.64 | 243.33 | 0.8732 | 393.3 | 999999 | |
| 0.81 | -3.00 | 0.81 | -3.00 | -19.15 | 160.49 | 55.21 | 243.47 | 0.8691 | 779.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.80 | -18.66 | 160.25 | 54.97 | 243.92 | 0.8658 | 577.0 | 499.8 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -18.36 | 159.95 | 54.67 | 244.12 | 0.8625 | 580.0 | 563.0 | |
| 0.00 | 1.17 | 0.00 | 1.11 | -18.58 | 158.78 | 53.50 | 243.44 | 0.8539 | -7.0 | -93.1 | |
| 1.53 | 5.23 | 1.47 | 5.02 | -20.49 | 158.56 | 53.28 | 241.27 | 0.8583 | -431.2 | -339.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
