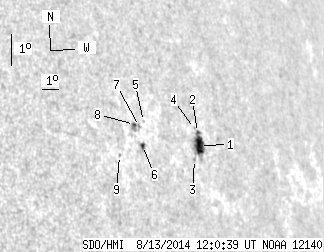

SDO HMI 2014-08-13 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.70 | 32.20 | 14.48 | 31.16 | 13.74 | 165.09 | 59.81 | 282.13 | 0.8605 | -320.3 | -11.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.55 | 20.03 | 11.54 | 20.01 | 13.51 | 166.21 | 60.93 | 281.85 | 0.8703 | -598.0 | -387.7 | |
| 0.90 | -1.00 | 0.90 | -1.00 | 13.91 | 166.26 | 60.98 | 282.31 | 0.8708 | -481.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.80 | 13.13 | 165.73 | 60.45 | 281.40 | 0.8662 | -617.0 | -577.6 | |
| 0.00 | 0.72 | 0.00 | 0.72 | 14.05 | 166.13 | 60.85 | 282.47 | 0.8697 | -431.0 | -386.6 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 14.55 | 163.18 | 57.90 | 283.12 | 0.8440 | 238.0 | 270.0 | |
| 1.44 | 3.70 | 1.31 | 3.36 | 13.84 | 162.83 | 57.55 | 282.28 | 0.8407 | 458.4 | 356.6 | |
| 0.00 | 1.26 | 0.00 | 1.15 | 14.43 | 162.89 | 57.61 | 282.97 | 0.8413 | 389.0 | 337.9 | |
| 0.81 | 4.33 | 0.73 | 3.92 | 14.51 | 162.63 | 57.35 | 283.08 | 0.8390 | 635.6 | 576.5 | |
| 0.00 | 1.08 | 0.00 | 0.95 | 13.66 | 161.44 | 56.16 | 282.10 | 0.8276 | 451.0 | 479.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
