SDO HMI 2014-08-13 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.43 | 38.87 | 14.74 | 39.31 | -18.64 | 160.83 | 56.10 | 244.33 | 0.8745 | 336.5 | 309.1 | |
|
previous
or next observation for the same group /

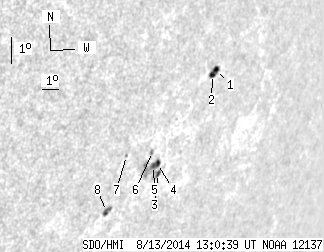

back to the solar disc SDO HMI 2014-08-13 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.16 | 8.48 | 3.31 | 8.87 | -16.18 | 162.76 | 58.04 | 247.67 | 0.8828 | 442.0 | 245.4 | |
| 2.80 | -1.00 | 2.92 | -1.00 | -16.33 | 162.66 | 57.93 | 247.47 | 0.8823 | 513.1 | 999999 | |
| 1.62 | 21.74 | 1.67 | 21.98 | -19.41 | 161.00 | 56.27 | 243.57 | 0.8779 | 330.1 | 427.7 | |
| 2.25 | -3.00 | 2.29 | -3.00 | -19.06 | 160.76 | 56.03 | 243.87 | 0.8751 | 647.4 | 999999 | |
| 1.89 | -3.00 | 1.92 | -3.00 | -19.10 | 160.55 | 55.82 | 243.74 | 0.8736 | 737.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 2.07 | -18.61 | 160.25 | 55.52 | 244.17 | 0.8699 | 600.0 | 504.3 | |
| 0.00 | 1.08 | 0.00 | 1.04 | -18.60 | 158.79 | 54.06 | 243.64 | 0.8584 | -90.0 | -129.9 | |
| 2.71 | 5.50 | 2.63 | 5.35 | -20.44 | 158.59 | 53.86 | 241.55 | 0.8626 | -489.7 | -312.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
