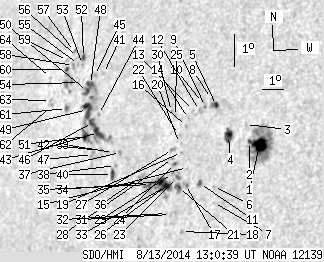

SDO HMI 2014-08-13 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.03 | 295.57 | 58.61 | 227.46 | 13.81 | 54.52 | -50.21 | 77.41 | 0.7654 | -41.1 | 21.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.80 | 74.05 | 9.66 | 51.83 | 13.85 | 59.55 | -45.18 | 76.93 | 0.7093 | -920.1 | -369.3 | |
| 1.26 | -1.00 | 0.89 | -1.00 | 13.91 | 59.09 | -45.64 | 76.90 | 0.7148 | -391.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 14.41 | 58.78 | -45.95 | 76.24 | 0.7190 | -519.0 | -358.3 | |
| 7.04 | 10.19 | 5.05 | 7.32 | 14.02 | 58.11 | -46.62 | 76.86 | 0.7264 | -627.5 | -383.2 | |
| 1.71 | 4.87 | 1.25 | 3.56 | 14.88 | 57.32 | -47.41 | 75.76 | 0.7364 | 408.6 | -148.3 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 12.42 | 57.82 | -46.91 | 79.08 | 0.7286 | -610.0 | -487.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 11.94 | 57.93 | -46.80 | 79.74 | 0.7271 | -561.0 | -526.7 | |
| 0.00 | 1.44 | 0.00 | 1.06 | 15.08 | 57.03 | -47.70 | 75.53 | 0.7399 | -471.0 | -424.8 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 14.81 | 56.82 | -47.91 | 75.91 | 0.7419 | -615.0 | -604.2 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 14.92 | 56.65 | -48.08 | 75.78 | 0.7440 | -403.0 | -423.0 | |
| 0.90 | 2.80 | 0.66 | 2.04 | 12.46 | 57.17 | -47.56 | 79.07 | 0.7362 | -773.6 | -657.1 | |
| 0.00 | 1.62 | 0.00 | 1.20 | 14.67 | 56.58 | -48.15 | 76.13 | 0.7445 | -618.0 | -548.1 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 14.64 | 56.30 | -48.43 | 76.19 | 0.7476 | -435.0 | -397.5 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 14.38 | 56.14 | -48.59 | 76.55 | 0.7492 | -539.0 | -464.0 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 12.90 | 56.50 | -48.23 | 78.51 | 0.7441 | -507.0 | -483.8 | |
| 0.00 | 1.44 | 0.00 | 1.08 | 14.13 | 56.12 | -48.61 | 76.89 | 0.7493 | -645.0 | -503.5 | |
| 0.00 | 3.79 | 0.00 | 2.80 | 12.38 | 56.54 | -48.19 | 79.21 | 0.7435 | -811.0 | -641.6 | |
| 0.00 | 1.44 | 0.00 | 1.06 | 10.94 | 56.68 | -48.05 | 81.14 | 0.7413 | -573.0 | -522.1 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 13.33 | 56.10 | -48.63 | 77.96 | 0.7489 | -627.0 | -530.7 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 13.59 | 55.94 | -48.79 | 77.62 | 0.7509 | -522.0 | -592.0 | |
| 2.44 | 6.31 | 1.81 | 4.69 | 12.26 | 56.24 | -48.49 | 79.39 | 0.7468 | -760.5 | -625.9 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 13.86 | 55.81 | -48.91 | 77.27 | 0.7525 | -497.0 | -428.4 | |
| 0.72 | 3.25 | 0.54 | 2.41 | 12.56 | 56.11 | -48.61 | 78.99 | 0.7483 | -670.4 | -586.4 | |
| 0.63 | 1.71 | 0.47 | 1.28 | 12.97 | 55.91 | -48.82 | 78.45 | 0.7508 | -565.9 | -470.2 | |
| 0.00 | 1.17 | 0.00 | 0.88 | 14.39 | 55.52 | -49.21 | 76.59 | 0.7562 | -480.0 | -387.4 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 12.45 | 55.95 | -48.78 | 79.14 | 0.7501 | -506.0 | -429.9 | |
| 0.00 | 2.16 | 0.00 | 1.63 | 13.38 | 55.66 | -49.07 | 77.92 | 0.7539 | -582.0 | -511.0 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 13.11 | 55.73 | -49.00 | 78.28 | 0.7529 | -402.0 | -271.2 | |
| 0.00 | 1.44 | 0.00 | 1.08 | 12.66 | 55.85 | -48.88 | 78.87 | 0.7514 | -432.0 | -334.6 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 14.53 | 55.28 | -49.45 | 76.43 | 0.7589 | -401.0 | -294.0 | |
| 0.00 | 1.89 | 0.00 | 1.41 | 11.41 | 56.06 | -48.67 | 80.53 | 0.7485 | -625.0 | -459.3 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 11.43 | 55.87 | -48.86 | 80.51 | 0.7507 | -567.0 | -484.4 | |
| 5.23 | 30.49 | 3.93 | 23.02 | 12.24 | 55.62 | -49.10 | 79.44 | 0.7537 | -614.3 | -275.5 | |
| 5.50 | -33.00 | 4.15 | -33.00 | 12.37 | 55.35 | -49.38 | 79.28 | 0.7568 | -440.3 | 999999 | |
| 1.71 | -33.00 | 1.31 | -33.00 | 12.24 | 54.90 | -49.83 | 79.47 | 0.7618 | -283.4 | 999999 | |
| 0.00 | 3.52 | 0.00 | 2.71 | 12.44 | 54.41 | -50.32 | 79.23 | 0.7673 | 297.0 | 257.9 | |
| 0.00 | 1.89 | 0.00 | 1.50 | 13.08 | 53.19 | -51.54 | 78.46 | 0.7807 | 746.0 | 635.2 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 12.67 | 53.06 | -51.67 | 78.99 | 0.7820 | 578.0 | 432.8 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 13.05 | 52.85 | -51.88 | 78.51 | 0.7843 | 555.0 | 500.8 | |
| 2.71 | 5.32 | 2.14 | 4.22 | 12.38 | 52.99 | -51.74 | 79.36 | 0.7826 | 489.3 | 370.8 | |
| 0.00 | 1.17 | 0.00 | 0.96 | 15.39 | 51.56 | -53.17 | 75.63 | 0.7989 | 352.0 | 320.8 | |
| 0.00 | 1.08 | 0.00 | 0.87 | 13.06 | 52.23 | -52.50 | 78.53 | 0.7908 | 606.0 | 536.8 | |
| 6.58 | 74.50 | 5.35 | 61.17 | 13.59 | 51.91 | -52.82 | 77.87 | 0.7943 | 749.1 | 519.3 | |
| 0.00 | 1.26 | 0.00 | 1.03 | 14.13 | 51.73 | -52.99 | 77.20 | 0.7964 | 698.0 | 590.9 | |
| 0.00 | 3.43 | 0.00 | 2.84 | 15.28 | 51.12 | -53.61 | 75.79 | 0.8033 | 668.0 | 573.1 | |
| 3.61 | -43.00 | 2.96 | -43.00 | 13.86 | 51.51 | -53.22 | 77.55 | 0.7986 | 735.5 | 999999 | |
| 0.00 | 2.53 | 0.00 | 2.05 | 12.90 | 51.81 | -52.92 | 78.75 | 0.7951 | 629.0 | 576.1 | |
| 3.43 | -43.00 | 2.84 | -43.00 | 15.00 | 51.01 | -53.72 | 76.16 | 0.8042 | 748.6 | 999999 | |
| 8.48 | -43.00 | 7.01 | -43.00 | 14.23 | 51.12 | -53.61 | 77.11 | 0.8027 | 667.8 | 999999 | |
| 2.80 | -43.00 | 2.32 | -43.00 | 14.77 | 50.93 | -53.80 | 76.44 | 0.8049 | 727.4 | 999999 | |
| 3.61 | -43.00 | 2.97 | -43.00 | 13.41 | 51.29 | -53.44 | 78.13 | 0.8007 | 574.1 | 999999 | |
| 1.44 | 3.16 | 1.22 | 2.66 | 15.78 | 50.33 | -54.39 | 75.23 | 0.8113 | 564.9 | 501.5 | |
| 0.00 | 0.99 | 0.00 | 0.84 | 15.56 | 50.36 | -54.36 | 75.50 | 0.8109 | 750.0 | 649.0 | |
| 0.00 | 1.89 | 0.00 | 1.59 | 15.00 | 50.41 | -54.32 | 76.18 | 0.8101 | 445.0 | 456.0 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 15.54 | 50.15 | -54.58 | 75.53 | 0.8130 | 543.0 | 500.7 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 15.75 | 50.02 | -54.71 | 75.29 | 0.8144 | 388.0 | 382.6 | |
| 0.00 | 1.98 | 0.00 | 1.69 | 15.91 | 49.78 | -54.94 | 75.10 | 0.8168 | 364.0 | 318.6 | |
| 0.00 | 2.07 | 0.00 | 1.77 | 15.49 | 49.90 | -54.83 | 75.62 | 0.8154 | 546.0 | 535.5 | |
| 0.00 | 1.80 | 0.00 | 1.55 | 15.61 | 49.52 | -55.21 | 75.49 | 0.8192 | 324.0 | 186.1 | |
| 1.35 | 14.97 | 1.16 | 12.77 | 15.33 | 49.57 | -55.16 | 75.83 | 0.8185 | 363.7 | 463.4 | |
| 1.08 | 2.98 | 0.92 | 2.52 | 14.16 | 50.01 | -54.72 | 77.24 | 0.8137 | 571.5 | 453.9 | |
| 0.00 | 1.17 | 0.00 | 1.01 | 14.18 | 49.23 | -55.50 | 77.25 | 0.8213 | 144.0 | 267.3 | |
| 0.00 | 1.80 | 0.00 | 1.56 | 14.32 | 49.07 | -55.66 | 77.08 | 0.8229 | 285.0 | 251.1 | |
| 0.00 | 0.90 | 0.00 | 0.79 | 15.01 | 48.80 | -55.92 | 76.26 | 0.8258 | 328.0 | 255.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
