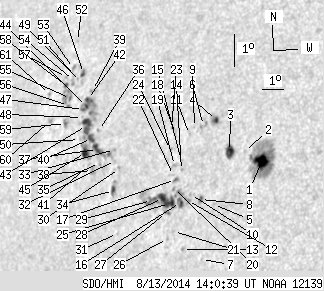

SDO HMI 2014-08-13 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.99 | 308.91 | 58.08 | 235.30 | 13.71 | 54.53 | -49.64 | 77.50 | 0.7591 | -18.4 | 39.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 76.39 | 8.32 | 52.98 | 13.83 | 59.58 | -44.60 | 76.89 | 0.7023 | -935.6 | -377.5 | |
| 0.00 | 1.17 | 0.00 | 0.82 | 14.08 | 58.76 | -45.41 | 76.64 | 0.7123 | -380.0 | -258.4 | |
| 7.21 | 9.65 | 5.13 | 6.86 | 14.03 | 58.10 | -46.07 | 76.79 | 0.7201 | -661.2 | -394.2 | |
| 1.80 | 7.03 | 1.30 | 5.10 | 14.92 | 57.27 | -46.91 | 75.65 | 0.7307 | 396.3 | -122.2 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 12.37 | 57.78 | -46.39 | 79.12 | 0.7225 | -600.0 | -461.4 | |
| 0.00 | 3.43 | 0.00 | 2.50 | 14.72 | 56.72 | -47.46 | 75.98 | 0.7368 | -656.0 | -586.6 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 10.66 | 57.60 | -46.57 | 81.49 | 0.7240 | -362.0 | -358.9 | |
| 1.26 | 2.43 | 0.91 | 1.76 | 12.47 | 57.17 | -47.01 | 79.01 | 0.7298 | -791.6 | -705.8 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 14.63 | 56.32 | -47.85 | 76.15 | 0.7412 | -494.0 | -504.7 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 12.59 | 56.68 | -47.50 | 78.89 | 0.7356 | -615.0 | -560.7 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 14.40 | 56.16 | -48.02 | 76.48 | 0.7429 | -570.0 | -516.4 | |
| 0.00 | 2.43 | 0.00 | 1.78 | 12.39 | 56.59 | -47.59 | 79.16 | 0.7365 | -813.0 | -720.3 | |
| 0.00 | 1.53 | 0.00 | 1.12 | 10.89 | 56.69 | -47.49 | 81.19 | 0.7347 | -538.0 | -498.7 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 13.28 | 56.09 | -48.09 | 77.99 | 0.7428 | -572.0 | -519.2 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 13.58 | 56.00 | -48.17 | 77.59 | 0.7439 | -689.0 | -574.2 | |
| 3.07 | 45.72 | 2.25 | 34.10 | 12.31 | 56.28 | -47.89 | 79.29 | 0.7400 | -788.2 | -202.3 | |
| 0.54 | 2.62 | 0.40 | 1.93 | 12.98 | 55.88 | -48.30 | 78.40 | 0.7450 | -631.8 | -458.6 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 14.37 | 55.50 | -48.68 | 76.57 | 0.7502 | -384.0 | -374.2 | |
| 0.00 | 3.34 | 0.00 | 2.48 | 13.40 | 55.72 | -48.45 | 77.85 | 0.7470 | -679.0 | -450.7 | |
| 0.00 | 1.62 | 0.00 | 1.20 | 12.70 | 55.86 | -48.32 | 78.78 | 0.7451 | -358.0 | -296.6 | |
| 0.00 | 1.35 | 0.00 | 0.99 | 11.40 | 56.17 | -48.01 | 80.52 | 0.7410 | -444.0 | -470.2 | |
| 0.00 | 1.53 | 0.00 | 1.14 | 13.10 | 55.76 | -48.42 | 78.26 | 0.7464 | -314.0 | -294.9 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 14.54 | 55.26 | -48.92 | 76.37 | 0.7531 | -413.0 | -305.0 | |
| 0.00 | 1.17 | 0.00 | 0.88 | 13.87 | 55.40 | -48.77 | 77.25 | 0.7509 | -404.0 | -329.3 | |
| 6.94 | -16.00 | 5.14 | -16.00 | 12.23 | 55.78 | -48.39 | 79.42 | 0.7457 | -611.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.93 | 11.17 | 55.94 | -48.24 | 80.84 | 0.7435 | -500.0 | -418.7 | |
| 0.00 | 2.53 | 0.00 | 1.87 | 11.95 | 55.71 | -48.47 | 79.80 | 0.7464 | -493.0 | -416.7 | |
| 5.68 | -16.00 | 4.24 | -16.00 | 12.36 | 55.42 | -48.75 | 79.27 | 0.7498 | -471.7 | 999999 | |
| 3.07 | -16.00 | 2.31 | -16.00 | 12.25 | 54.93 | -49.25 | 79.43 | 0.7554 | -232.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.06 | 13.09 | 53.14 | -51.04 | 78.42 | 0.7753 | 747.0 | 718.2 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 11.12 | 53.56 | -50.62 | 80.96 | 0.7702 | 458.0 | 420.6 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 13.31 | 52.87 | -51.30 | 78.14 | 0.7783 | 320.0 | 322.8 | |
| 0.00 | 1.62 | 0.00 | 1.28 | 13.64 | 52.73 | -51.45 | 77.73 | 0.7800 | 547.0 | 463.2 | |
| 2.07 | 6.94 | 1.62 | 5.43 | 12.40 | 53.03 | -51.14 | 79.31 | 0.7762 | 525.7 | 409.5 | |
| 0.00 | 1.89 | 0.00 | 1.51 | 13.18 | 52.10 | -52.07 | 78.35 | 0.7864 | 396.0 | 436.3 | |
| 0.00 | 1.08 | 0.00 | 0.87 | 14.14 | 51.75 | -52.43 | 77.15 | 0.7905 | 682.0 | 606.8 | |
| 5.23 | 72.06 | 4.20 | 58.52 | 13.57 | 51.88 | -52.29 | 77.87 | 0.7889 | 762.4 | 537.1 | |
| 0.00 | 5.05 | 0.00 | 4.05 | 12.91 | 51.83 | -52.35 | 78.70 | 0.7892 | 694.0 | 548.8 | |
| 0.00 | 2.34 | 0.00 | 1.92 | 15.32 | 51.03 | -53.15 | 75.71 | 0.7986 | 675.0 | 604.6 | |
| 3.88 | -37.00 | 3.14 | -37.00 | 13.87 | 51.48 | -52.70 | 77.51 | 0.7932 | 738.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.45 | 13.08 | 51.62 | -52.56 | 78.50 | 0.7914 | 560.0 | 478.3 | |
| 1.44 | -37.00 | 1.19 | -37.00 | 15.03 | 50.87 | -53.31 | 76.09 | 0.8000 | 662.1 | 999999 | |
| 8.93 | -37.00 | 7.29 | -37.00 | 14.24 | 51.09 | -53.08 | 77.06 | 0.7973 | 690.2 | 999999 | |
| 1.89 | -37.00 | 1.55 | -37.00 | 14.81 | 50.90 | -53.28 | 76.35 | 0.7997 | 766.3 | 999999 | |
| 5.23 | -37.00 | 4.25 | -37.00 | 13.42 | 51.31 | -52.87 | 78.08 | 0.7948 | 574.5 | 999999 | |
| 1.71 | 3.43 | 1.43 | 2.85 | 15.80 | 50.37 | -53.81 | 75.17 | 0.8055 | 521.8 | 459.9 | |
| 0.63 | -37.00 | 0.52 | -37.00 | 14.71 | 50.77 | -53.40 | 76.49 | 0.8008 | 657.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.82 | 14.46 | 50.81 | -53.37 | 76.80 | 0.8004 | 263.0 | 291.2 | |
| 0.00 | 1.08 | 0.00 | 0.90 | 15.54 | 50.31 | -53.87 | 75.49 | 0.8060 | 699.0 | 699.1 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 13.79 | 50.88 | -53.30 | 77.64 | 0.7994 | 458.0 | 395.0 | |
| 0.00 | 1.17 | 0.00 | 0.98 | 15.62 | 50.12 | -54.06 | 75.41 | 0.8079 | 535.0 | 525.9 | |
| 0.00 | 0.99 | 0.00 | 0.84 | 16.73 | 49.67 | -54.51 | 74.06 | 0.8131 | 417.0 | 315.8 | |
| 0.00 | 2.62 | 0.00 | 2.20 | 15.90 | 49.79 | -54.39 | 75.08 | 0.8113 | 352.0 | 284.0 | |
| 0.00 | 3.79 | 0.00 | 3.18 | 15.54 | 49.93 | -54.25 | 75.52 | 0.8097 | 531.0 | 489.3 | |
| 0.72 | 15.87 | 0.61 | 13.38 | 14.98 | 49.98 | -54.20 | 76.20 | 0.8089 | 632.0 | 448.9 | |
| 0.54 | -55.00 | 0.45 | -55.00 | 14.76 | 49.95 | -54.23 | 76.48 | 0.8091 | 529.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 15.60 | 49.53 | -54.65 | 75.47 | 0.8137 | 212.0 | 197.1 | |
| 1.35 | -55.00 | 1.15 | -55.00 | 15.35 | 49.57 | -54.61 | 75.77 | 0.8132 | 340.7 | 999999 | |
| 0.81 | 4.42 | 0.68 | 3.70 | 14.21 | 49.99 | -54.19 | 77.16 | 0.8085 | 600.3 | 511.7 | |
| 0.00 | 2.80 | 0.00 | 2.39 | 14.22 | 49.17 | -55.01 | 77.18 | 0.8166 | 455.0 | 298.5 | |
| 0.00 | 1.35 | 0.00 | 1.17 | 15.00 | 48.82 | -55.36 | 76.24 | 0.8203 | 310.0 | 219.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
