SDO HMI 2014-08-13 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.33 | 30.93 | 15.61 | 31.33 | 13.66 | 165.60 | 61.42 | 282.03 | 0.8741 | -375.5 | -243.0 | |
|
previous
or next observation for the same group /

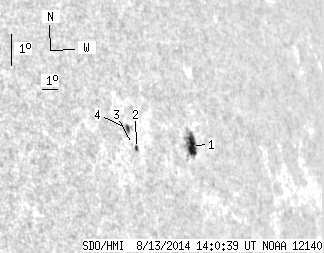

back to the solar disc SDO HMI 2014-08-13 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.90 | 24.89 | 13.34 | 25.69 | 13.55 | 166.24 | 62.06 | 281.90 | 0.8796 | -594.6 | -423.2 | |
| 0.99 | 2.07 | 0.93 | 1.94 | 13.80 | 162.84 | 58.66 | 282.20 | 0.8507 | 453.7 | 391.6 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 13.94 | 162.65 | 58.47 | 282.37 | 0.8490 | 502.0 | 360.8 | |
| 1.44 | 3.16 | 1.34 | 2.94 | 14.44 | 162.56 | 58.38 | 282.97 | 0.8483 | 575.1 | 464.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
