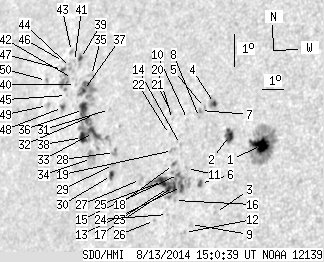

SDO HMI 2014-08-13 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.09 | 328.09 | 56.86 | 247.40 | 13.69 | 54.44 | -49.18 | 77.50 | 0.7540 | -89.8 | 78.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-13 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.24 | 78.99 | 10.48 | 54.26 | 13.85 | 59.60 | -44.03 | 76.81 | 0.6954 | -939.2 | -365.2 | |
| 6.85 | 10.10 | 4.83 | 7.12 | 14.04 | 58.13 | -45.49 | 76.70 | 0.7132 | -658.2 | -374.4 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 11.67 | 58.06 | -45.56 | 80.05 | 0.7123 | -684.0 | -582.4 | |
| 2.16 | 6.13 | 1.55 | 4.40 | 14.96 | 57.21 | -46.41 | 75.53 | 0.7250 | 340.5 | -171.7 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 14.80 | 56.80 | -46.83 | 75.80 | 0.7296 | -747.0 | -586.3 | |
| 1.80 | 3.16 | 1.29 | 2.26 | 12.49 | 57.21 | -46.42 | 78.95 | 0.7229 | -799.5 | -621.6 | |
| 0.00 | 1.62 | 0.00 | 1.18 | 14.70 | 56.64 | -46.98 | 75.96 | 0.7313 | -710.0 | -635.6 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 14.48 | 56.65 | -46.97 | 76.26 | 0.7309 | -577.0 | -555.8 | |
| 0.00 | 1.80 | 0.00 | 1.29 | 11.21 | 57.03 | -46.59 | 80.73 | 0.7243 | -276.0 | -202.6 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 14.38 | 56.13 | -47.50 | 76.45 | 0.7369 | -553.0 | -511.6 | |
| 0.00 | 1.71 | 0.00 | 1.24 | 12.89 | 56.47 | -47.15 | 78.45 | 0.7318 | -601.0 | -509.5 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 10.95 | 56.82 | -46.81 | 81.10 | 0.7268 | -525.0 | -396.0 | |
| 3.79 | 54.37 | 2.75 | 39.79 | 12.33 | 56.38 | -47.25 | 79.22 | 0.7325 | -825.2 | -480.9 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 13.60 | 56.01 | -47.61 | 77.53 | 0.7375 | -585.0 | -471.8 | |
| 1.08 | -13.00 | 0.79 | -13.00 | 12.68 | 56.15 | -47.47 | 78.76 | 0.7353 | -617.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 11.88 | 56.16 | -47.47 | 79.85 | 0.7349 | -616.0 | -482.7 | |
| 3.97 | -13.00 | 2.89 | -13.00 | 12.30 | 56.01 | -47.61 | 79.29 | 0.7367 | -720.7 | 999999 | |
| 0.45 | 2.52 | 0.33 | 1.85 | 12.96 | 55.85 | -47.77 | 78.39 | 0.7390 | -561.4 | -480.5 | |
| 0.00 | 2.52 | 0.00 | 1.86 | 13.38 | 55.70 | -47.93 | 77.84 | 0.7410 | -464.0 | -477.5 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 14.32 | 55.44 | -48.19 | 76.60 | 0.7447 | -432.0 | -389.8 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 14.53 | 55.33 | -48.29 | 76.33 | 0.7460 | -397.0 | -330.1 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 13.86 | 55.43 | -48.20 | 77.22 | 0.7444 | -402.0 | -337.0 | |
| 3.97 | -13.00 | 2.91 | -13.00 | 12.25 | 55.79 | -47.83 | 79.37 | 0.7392 | -555.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 11.43 | 55.93 | -47.69 | 80.47 | 0.7373 | -538.0 | -452.4 | |
| 8.12 | -13.00 | 5.99 | -13.00 | 12.41 | 55.47 | -48.15 | 79.17 | 0.7430 | -415.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 11.20 | 55.38 | -48.24 | 80.80 | 0.7436 | -421.0 | -362.6 | |
| 0.00 | 4.33 | 0.00 | 3.25 | 12.38 | 54.44 | -49.18 | 79.25 | 0.7547 | 304.0 | 206.2 | |
| 0.00 | 4.24 | 0.00 | 3.28 | 13.09 | 52.99 | -50.64 | 78.40 | 0.7710 | 746.0 | 654.1 | |
| 0.00 | 1.35 | 0.00 | 1.05 | 12.73 | 53.04 | -50.59 | 78.87 | 0.7703 | 484.0 | 430.2 | |
| 2.61 | 4.60 | 2.02 | 3.56 | 12.39 | 53.03 | -50.59 | 79.31 | 0.7702 | 539.2 | 423.5 | |
| 0.00 | 1.17 | 0.00 | 0.92 | 14.37 | 52.35 | -51.27 | 76.78 | 0.7785 | 593.0 | 503.1 | |
| 0.00 | 1.08 | 0.00 | 0.86 | 14.16 | 51.66 | -51.96 | 77.11 | 0.7857 | 722.0 | 680.7 | |
| 6.31 | 82.06 | 5.01 | 65.81 | 13.61 | 51.78 | -51.84 | 77.80 | 0.7841 | 783.0 | 580.1 | |
| 0.00 | 11.36 | 0.00 | 9.00 | 12.82 | 51.92 | -51.71 | 78.80 | 0.7824 | 572.0 | 395.0 | |
| 0.00 | 3.16 | 0.00 | 2.55 | 15.32 | 51.11 | -52.51 | 75.67 | 0.7921 | 706.0 | 582.9 | |
| 8.03 | -33.00 | 6.48 | -33.00 | 14.26 | 51.06 | -52.56 | 77.01 | 0.7920 | 705.7 | 999999 | |
| 1.44 | -33.00 | 1.17 | -33.00 | 14.83 | 50.87 | -52.76 | 76.30 | 0.7943 | 812.8 | 999999 | |
| 5.77 | -33.00 | 4.63 | -33.00 | 13.41 | 51.28 | -52.34 | 78.08 | 0.7893 | 594.5 | 999999 | |
| 1.71 | 5.32 | 1.41 | 4.37 | 15.78 | 50.36 | -53.26 | 75.14 | 0.8001 | 602.4 | 584.1 | |
| 0.00 | 0.99 | 0.00 | 0.81 | 14.98 | 50.40 | -53.23 | 76.15 | 0.7992 | 530.0 | 406.0 | |
| 0.00 | 1.80 | 0.00 | 1.49 | 15.66 | 50.09 | -53.54 | 75.31 | 0.8027 | 472.0 | 488.0 | |
| 0.00 | 0.72 | 0.00 | 0.59 | 15.14 | 50.18 | -53.45 | 75.96 | 0.8015 | 551.0 | 487.2 | |
| 0.00 | 2.16 | 0.00 | 1.80 | 15.95 | 49.82 | -53.81 | 74.97 | 0.8056 | 387.0 | 298.6 | |
| 0.00 | 3.97 | 0.00 | 3.29 | 15.47 | 49.95 | -53.67 | 75.57 | 0.8040 | 683.0 | 546.0 | |
| 0.00 | 0.90 | 0.00 | 0.74 | 14.60 | 50.05 | -53.57 | 76.64 | 0.8025 | 569.0 | 485.7 | |
| 0.00 | 0.99 | 0.00 | 0.83 | 15.61 | 49.52 | -54.11 | 75.42 | 0.8084 | 276.0 | 208.0 | |
| 1.26 | 13.80 | 1.06 | 11.48 | 15.37 | 49.56 | -54.07 | 75.72 | 0.8079 | 358.2 | 512.2 | |
| 1.53 | 4.15 | 1.27 | 3.43 | 14.22 | 49.97 | -53.65 | 77.12 | 0.8031 | 608.8 | 442.6 | |
| 0.00 | 3.52 | 0.00 | 2.96 | 14.21 | 49.17 | -54.46 | 77.17 | 0.8112 | 472.0 | 337.4 | |
| 0.00 | 1.80 | 0.00 | 1.53 | 14.96 | 48.84 | -54.78 | 76.26 | 0.8147 | 317.0 | 270.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
