SDO HMI 2014-08-13 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 6.84 | 0.63 | 3.41 | 7.16 | 106.65 | 3.58 | 280.58 | 0.0632 | 50.5 | -87.8 | |
|
previous
or next observation for the same group /

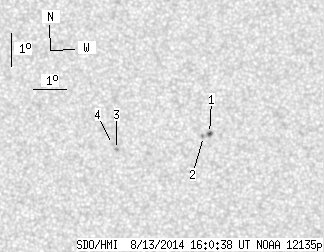

back to the solar disc SDO HMI 2014-08-13 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 2.43 | 0.63 | 1.21 | 7.33 | 107.81 | 4.74 | 279.71 | 0.0835 | -1083.5 | -923.2 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 7.24 | 107.62 | 4.55 | 278.97 | 0.0801 | -1025.0 | -789.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 6.87 | 104.96 | 1.88 | 279.74 | 0.0333 | 1049.0 | 885.9 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 7.02 | 104.83 | 1.76 | 285.12 | 0.0318 | 842.0 | 667.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
